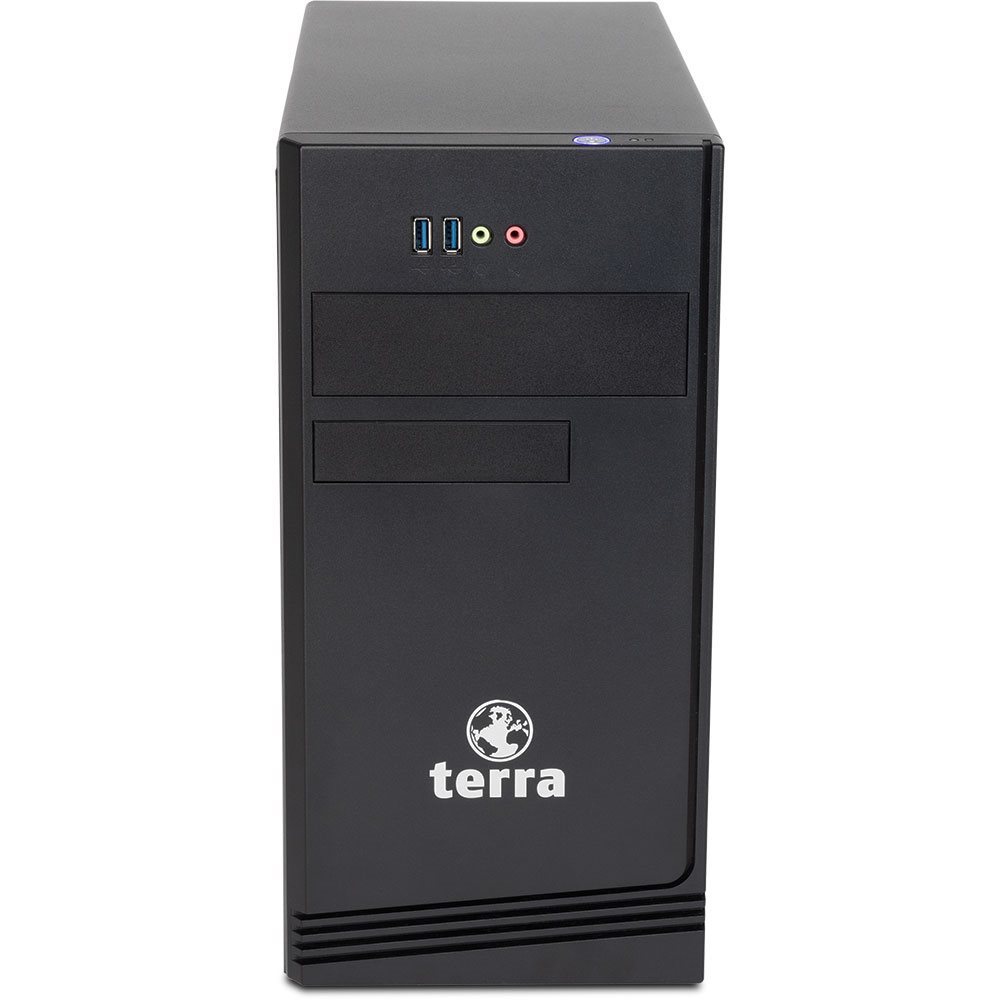

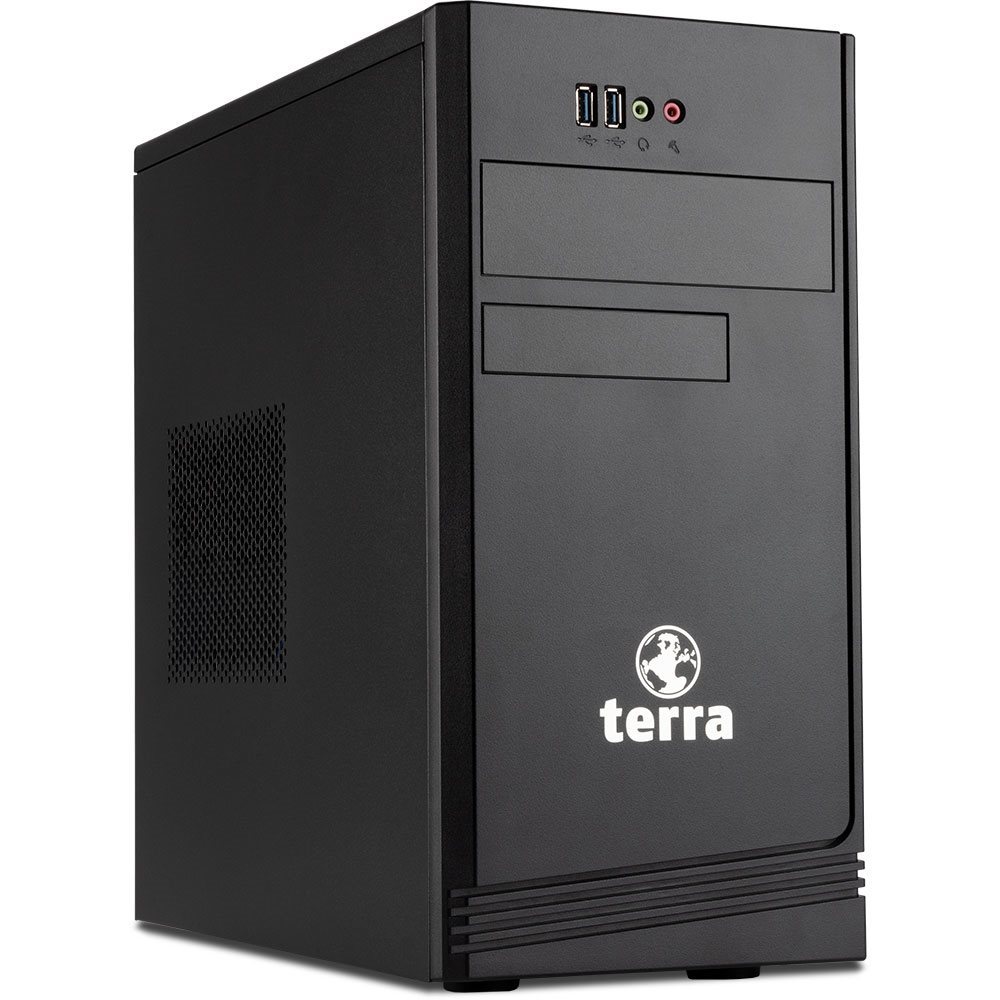

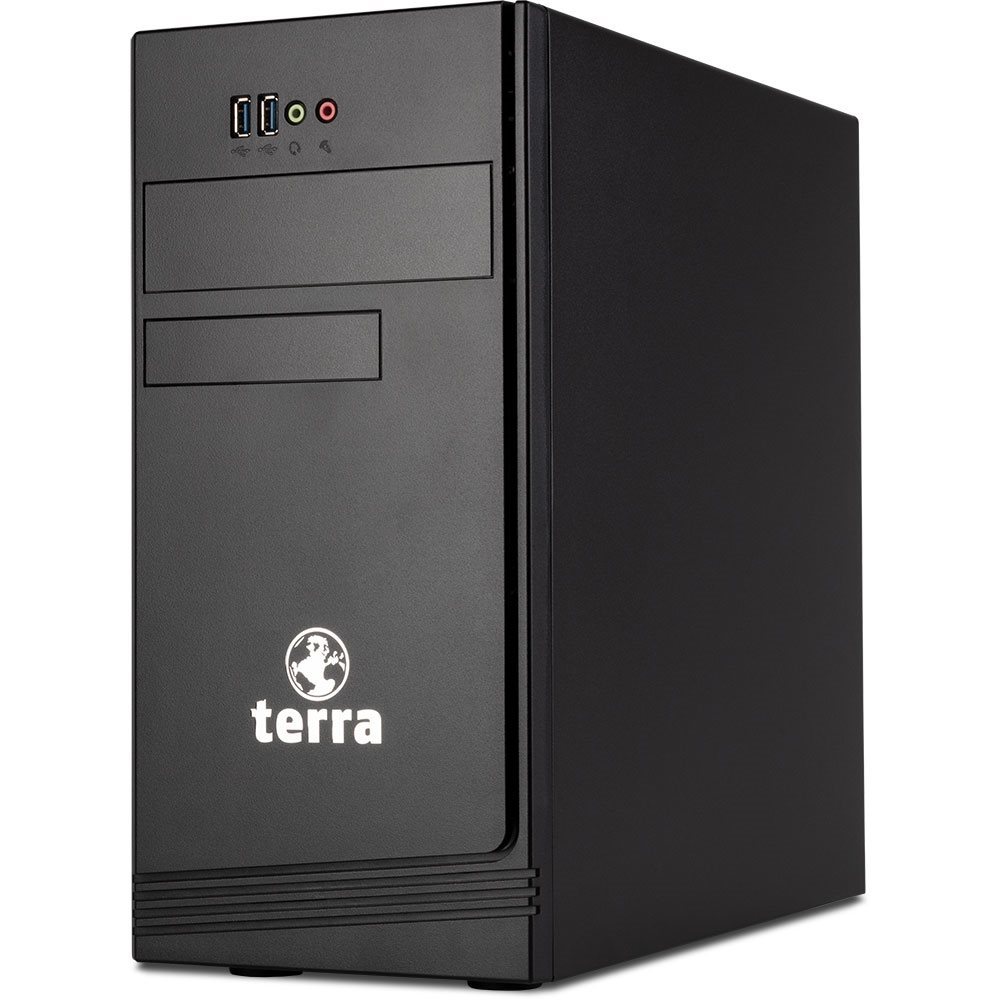

Core i3-12100 (4.3 GHz), Mini-Tower PC312 | 8 GB DDR5 RAM, 500 GB SSD, DVD-ReWriter, | Intel UHD 730 Graphics (1x HDMI, 1x DP, 1x VGA) | supports up to 3x Displays | GbE-LAN, optical wheel Mouse, w/o OS | Supported OS: Windows 10 (64-Bit) | (!) Without Keyboard
€ 569.00
100 in stock
| Category: General | |
|---|---|
| Processor model | Intel Core i3 (12. Gen.) 12100 / 12 MB Intel Smart Cache, max. Turbo-Frequency 4.3 GHz) |
| Operating system | No operating system |
| Category: Processor | |
| Processor family | Core i3 |
| Processor cores | Quad-Core (4 Core) |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 8 |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 96 |
| Memory clock speed | PC5600 |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 2 |
| Category: Storage | |
| Total storage capacity | 500 |
| HDD interface | 4x SATA 6Gb/s ports, 1x M.2 slot (Key M) (supports PCIe 3.0 x4) |
| RAID levels | No RAID supported |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 |
| HDD capacity | 1 x 500 GB – SSD |
| Number of storage drives supported | 4x SATA-3 (6 Gb/s) |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Business |
| Nivel de ruido | 0,8 Sone (Idle Mode) ¦ 0,8 Sone (Operation Mode) |
| Audio output channels | 8-channel |
| Motherboard chipset | Intel® H610 |
| Category: Design | |
| Chassis type | Mini tower |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Option. Keyboard not included |
| Category: Technical details | |
| Localization | International |
| Category: Packaging content | |
| Included Accessories | Quick Start Guide, Powercord EU/ UK |
| Keyboard language | Option. Keyboard not included |
| Category: Expansion slots | |
| Expansion slots | 1x PCIe 4.0 x16 Slot ¦ 1x PCIe 3.0 x1 Slot |
| Category: Weight & dimensions | |
| Height | 37.5 |
| Width | 18 |
| Depth | 38.4 |
| Weight | 7 |
| Category: Other features | |
| Number of drive bays | 1 front – 13.3 cm ( 5.25" ) ¦ 1 front – 8.9 cm ( 3.5" ) ¦ 1 internal – 8.9 cm ( 3.5"/ 2.5" with adapter)* ¦ 1 internal 6.4 cm (for 2.5" SSD) ¦ *Depending on production batch, installation basket for additional drives optional |
| Interface | 1x USB 3.2 Gen2x1, 4x USB 2.0 ¦ 1x DP, 1x HDMI, 1x VGA ¦ 1x Intel 1Gb Ethernet, 3x Audio jacks, 2x PS/2 (purple = Keyboard / green = Mouse) |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | ASUS Prime H610M-A |
| Cooling type | Active |

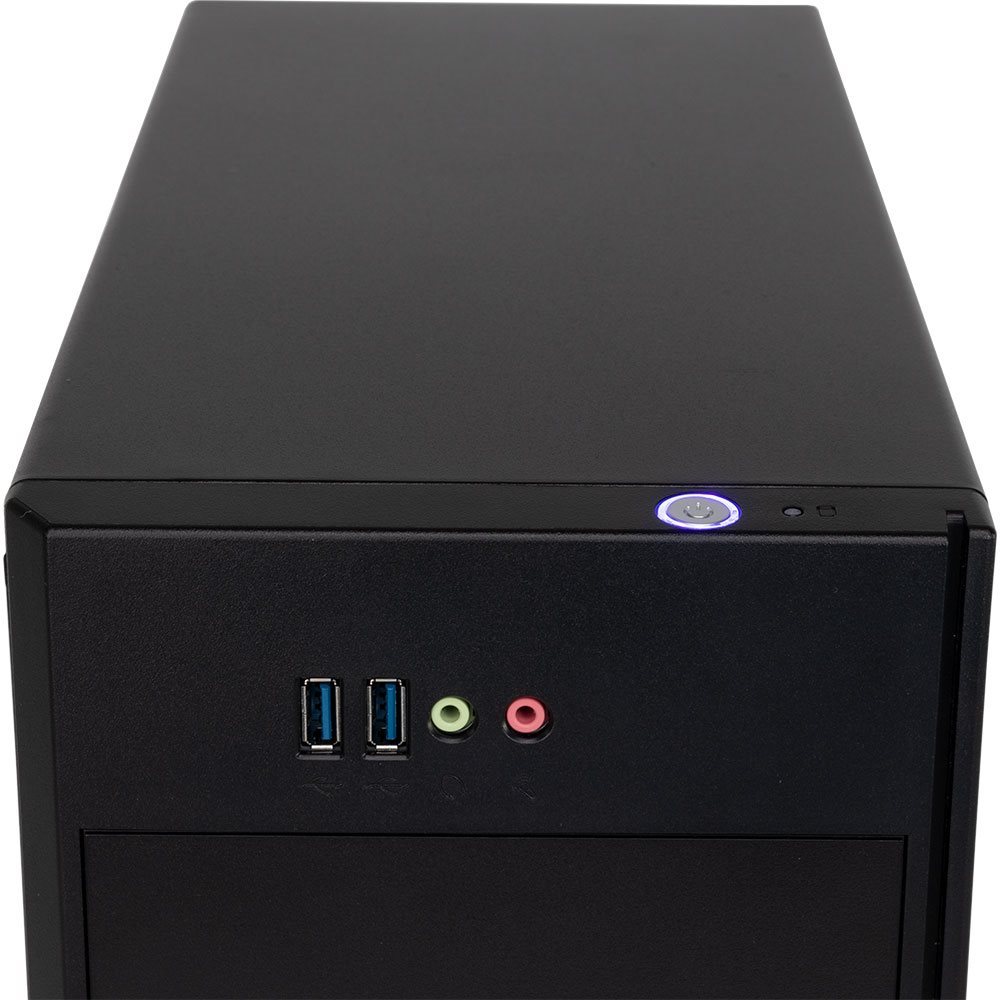

| Special features | TPM 2.0 ¦ 2x USB 3.2 Gen1 Typ A + Audio in Front |
| Category: Mouse | |
| Mouse included | Terra Mouse Corded |
| Category: Graphics | |
| On-board graphics adapter memory | Dynamisch |
| On-board graphics adapter maximum resolution | HDMI 4K @60Hz ¦ DP 4K @60Hz |
| Graphics card | Intel UHD Graphics 730 |
| On-board graphics card model | Intel UHD Graphics 730 |
| Graphics adapter ports | 1x DP, 1x HDMI, 1x VGA ¦ Unterstützt Triple-Monitoring |
| Category: Power | |
| Power source | ATX power supply. Meets 80-plus Bronce ¦ Eligible for regular business use max. 60h/ week ¦ Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 % |
| Power consumption (standby) | Ø 1.2 Watt (S3 Mode, Suspend to RAM, WOL activated) ¦ 0,25 Watt Soft off (S5 Mode) |
| Maximum input power | 350 Watt |
| Nominal power | Ø 17 Watt Long Idle-Mode ¦ Ø 75 kWh a year (TEC = Typical Energy Consumption) ¦ Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 230V ( 50 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 5 °C – 35 °C |
| Maximum operating temperature range (T-T) | 35 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | Intel I219V |
| Data link protocols | Ethernet ¦ Fast Ethernet ¦ Gigabit Ethernet |
| Category: Optical drive | |
| Optical drive type | w/o ODD |
| Category: Input device | |
| Movement detection technology | Optical |
| Device interface | USB ¦ Note: Keyboard not included |
