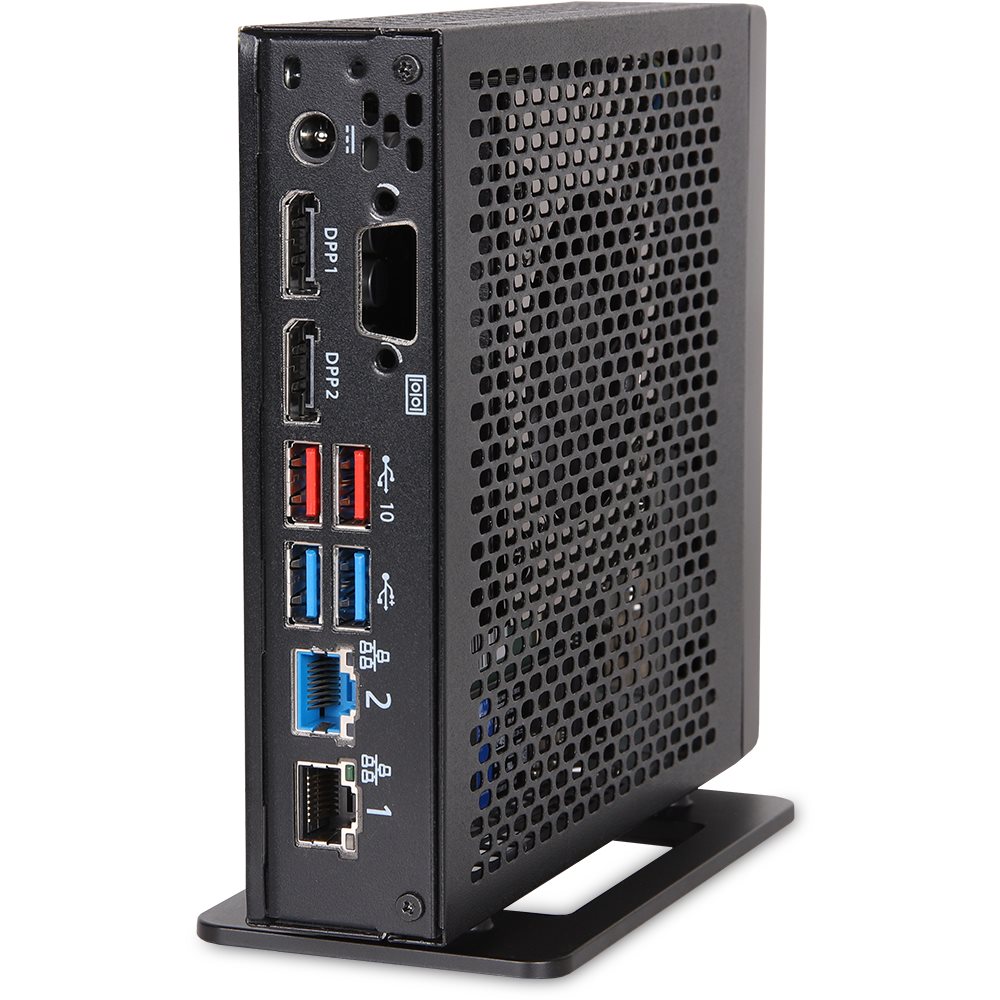

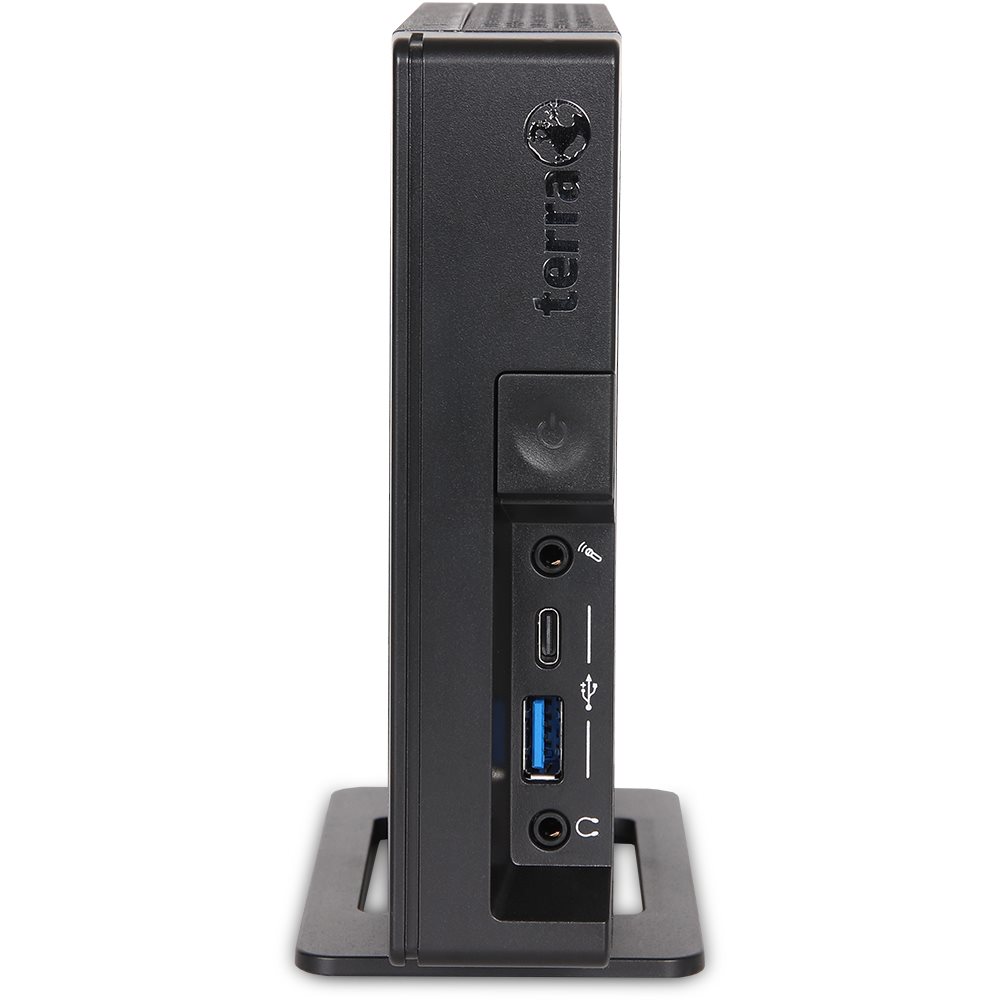

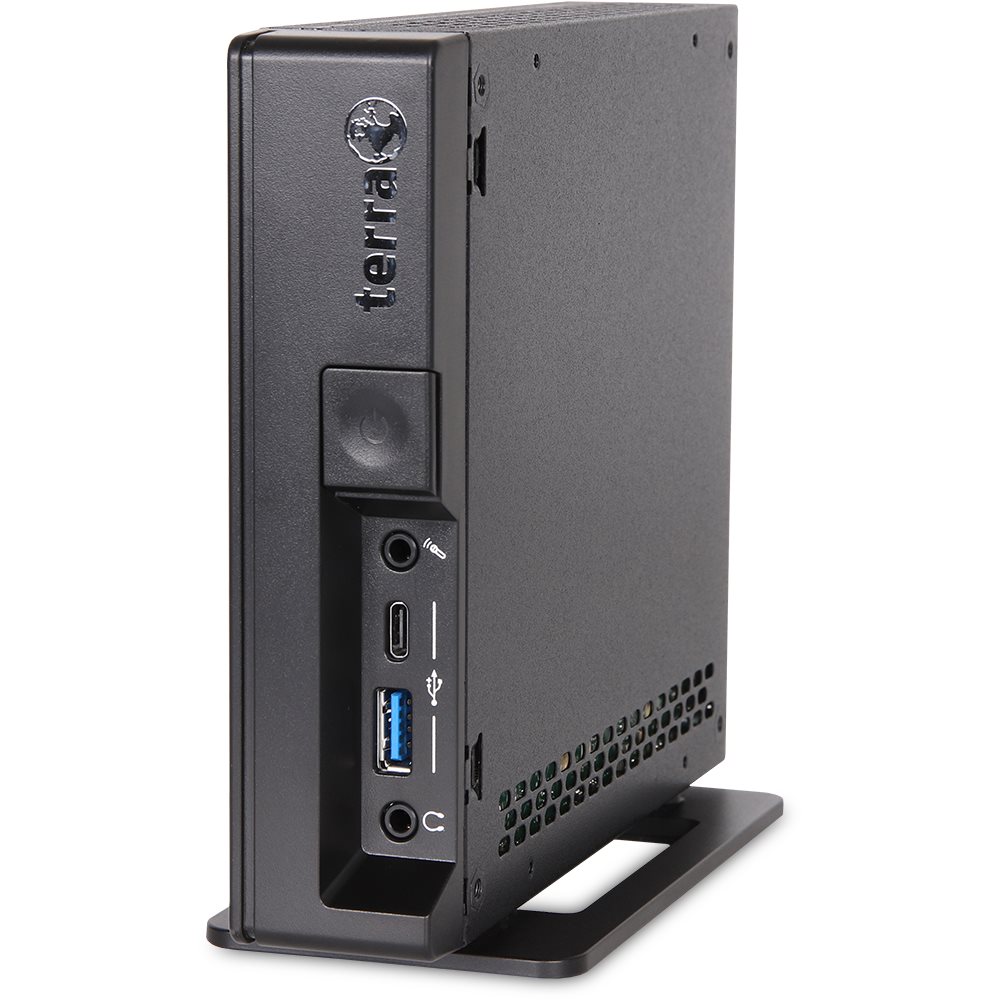

TERRA Greenline-Serie | Mini-STX-format (0,9 L volume) fanless | Intel i3-N305/ 8-Core up to 3.8 GHz | 8GB SO-DIMM DDR5, 240GB M.2-SSD NVMe | WLAN, Bluetooth, 2x LAN, 1x COM, 2x DP | Front: 1x USB-A 3.2, 1x USB-C 3.2 Rear: 4x USB-A 3.2 | Windows 11 Pro , MS Office trial | (!) Optional keyboard & mouse
€ 749.00
15 in stock
| Category: General | |
|---|---|
| Processor model | Intel® Processor Core i3 N305/ 6M Cache, up to 3.80 GHz |
| Operating system | Windows 11 Pro |
| Category: Processor | |
| Processor family | Pentium |
| Processor cores | Okta-Core (8-Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 8 |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 8 |
| Memory clock speed | PC5600 |
| Internal memory type | DDR5 |
| Memory slots | 1 |
| Category: Storage | |
| Total storage capacity | 240 |
| HDD interface | 1x M.2 PCIe 2230/2242/2280 (Key-M ,PCIe x2 Gen3/NVMe SSD modules) |
| SSD interface | SATA-3 |
| SSD capacity | 240 |
| HDD capacity | 1 x 240 GB – SSD |
| Number of storage drives supported | 1 |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Industry |
| Nivel de ruido | 0 dB |
| Audio output channels | Stereo |
| Motherboard chipset | Alder Lake N SoC |
| Category: Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar 8.0. EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC ¦ 24-7 ready (temporary fan-maintance required)/ 24-7 ready SSD required |
| Keyboard form factor | Optional |
| Category: Keyboard | |
| Keyboard language | Keyboard optional |
| Device interface | USB |
| Category: Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Category: Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN), Driver CD, power supply, Europlug CEE7/16 1.8 m, Pedestal for vertical use ¦ Option: VESA mounting Kit |
| Category: Weight & dimensions | |
| Height | 3.6 (4.2) |
| Width | 14.7 (18.8) |
| Depth | 16.5 (17.5) |
| Weight | 0.9 |
| Category: Other features | |
| Interface | Front: 1x USB 3.2 Type A, 1x USB-C 3.2, 1x Audio ¦ Rear: 1x COM, 2x DP, 4x USB 3.2 Type A, 2x RJ45, DC-in, Kensington |
| Compatible operating systems | Windows 10 (64-Bit) ¦ Windows 11 (64-Bit) ¦ Unsupported OS by WAG: Linux (64-Bit) |
| Motherboard manufacturer | Kontron K3921-N6 (Core i3 N305) ¦ Industrial Series 24-7 ready ¦ Made in Germany |
| Cooling type | Passive – fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany ¦Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC ¦ 24-7 ready (temporary fan-maintance required) |
| Special features | TPM 2.0, Fanless |
| Category: Mouse | |
| Mouse included | Optional |
| Category: Graphics | |
| On-board graphics adapter memory | Dynamisch |
| On-board graphics adapter maximum resolution | Display Port 1.2 max. 4096×2160 @ 60Hz |
| Graphics card | Intel® UHD Graphics |
| Graphics adapter ports | 2x Display Port (DP), 1x DP via USB-C¦ supportsTriple-Monitoring |
| Category: Power | |
| Power source | External fanless power supply |
| Power consumption (standby) | Ø 2.0 Watt (Sleep Mode S3. Suspend to RAM. WOL activated) ¦ 0.2 Watt Soft off (S5 Mode) |
| Maximum input power | 24 |
| Nominal power | Ø 6 Watt Long Idle-Mode ¦ Ø 27 kWh a year (TEC = Typical Energy Consumption) ¦ Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Category: Operational conditions | |
| Recommended humidity operating range | 10 – 80% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | 1x Realtek RTL8111H, 10/100/1000 Mbps, WOL/PXE¦ 1x Realtek RTL8125BG-CG with 10/100/1000/2500 MBit/s |
| Wi-Fi standards | Intel AX201 Wi-Fi 6/ /Bluetooth ¦ 1x portable external antennas ¦ 802.11ax ¦ Bands: 2.4 GHz + 5 GHz (Dual-Band) |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax ¦ Bluetooth 5.2 |
| Category: Optical drive | |
| Optical drive type | Ohne optisches Laufwerk |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® Office 365 user |
