TERRA Greenline Mini-PC (1.5 Liter Volume) | Core i3-14100 (bis zu 4.7 GHz), 8 GB SO DDR5-RAM | 500 GB M.2-SSD PCIe, WiFi, Bluetooth, 1W Speaker | 1x GbE-LAN RJ45, Intel UHD-730 Graphics | 2x DP, 1x HDMI (replaceable by COM) | Windows 11 Pro | MS Office trial, VESA mounting Kit, w/o keyboard & mouse
€ 879.00
83 in stock
| Category: General | |
|---|---|
| Processor model | Intel Core i3 (14th. Gen.) 14100 / 4 Cores / 8 Threads / 12 MB Intel Smart Cache / bis zu 4.7GHz |
| Operating system | Windows 11 Pro |
| Category: Processor | |
| Processor family | Core i3 |
| Processor cores | Quad-Core (4 Core) |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 8 |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 |
| Memory clock speed | PC4800 |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 2 |
| Memory form factor | SO DIMM, 260-PIN |
| Category: Storage | |
| Total storage capacity | 500 |
| HDD interface | 2x M.2 (2280) PCIe/NVMe Gen4¦ 1x 2.5" SATA 6Gb/s (max 7mm height) |
| RAID levels | No Raid support |
| Card reader integrated | Not available |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 |
| HDD capacity | 1 x 500 GB – SSD |
| Number of storage drives supported | 2 |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Business |
| Nivel de ruido | 21.7 dB(A) Idle mode fan speed 2100 rpm, 31.5 dB(A) Operation mode fan speed 2900 rpm, measuring distance according to DIN EN ISO 7779: 0.5m |
| Motherboard chipset | Intel B760 |
| Audio system | High Definition Audio |
| Category: Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC ¦ 24-7 ready (temporary fan-maintance required) |
| Keyboard form factor | Option. Keyboard not included |
| Category: Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Category: Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN/ FR), Driver CD, PSU, WiFi Antenna, stand, VESA Mounting Kit incl. screws |
| Keyboard language | Option. Keyboard not included |
| Category: Weight & dimensions | |
| Height | 4.2 |
| Width | 17.5 |
| Depth | 17.5 |
| Weight | 1185 |
| Category: Other features | |

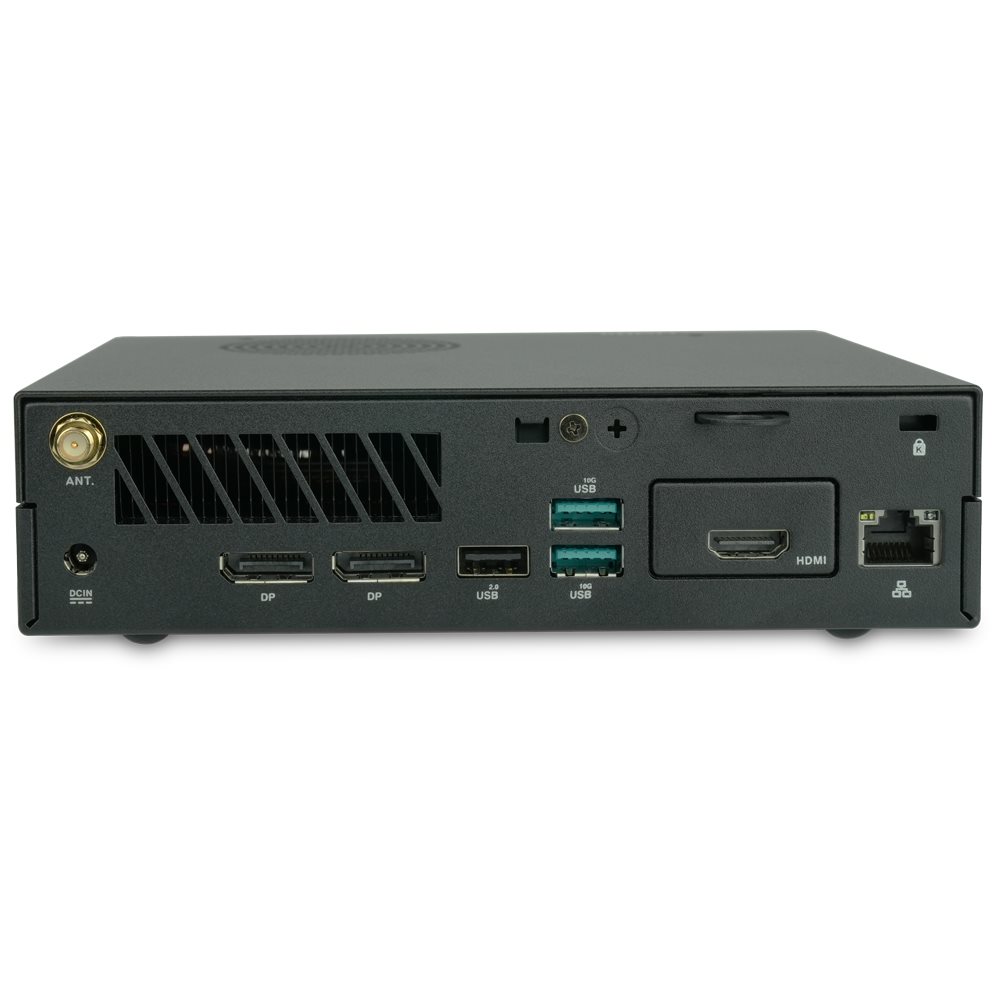

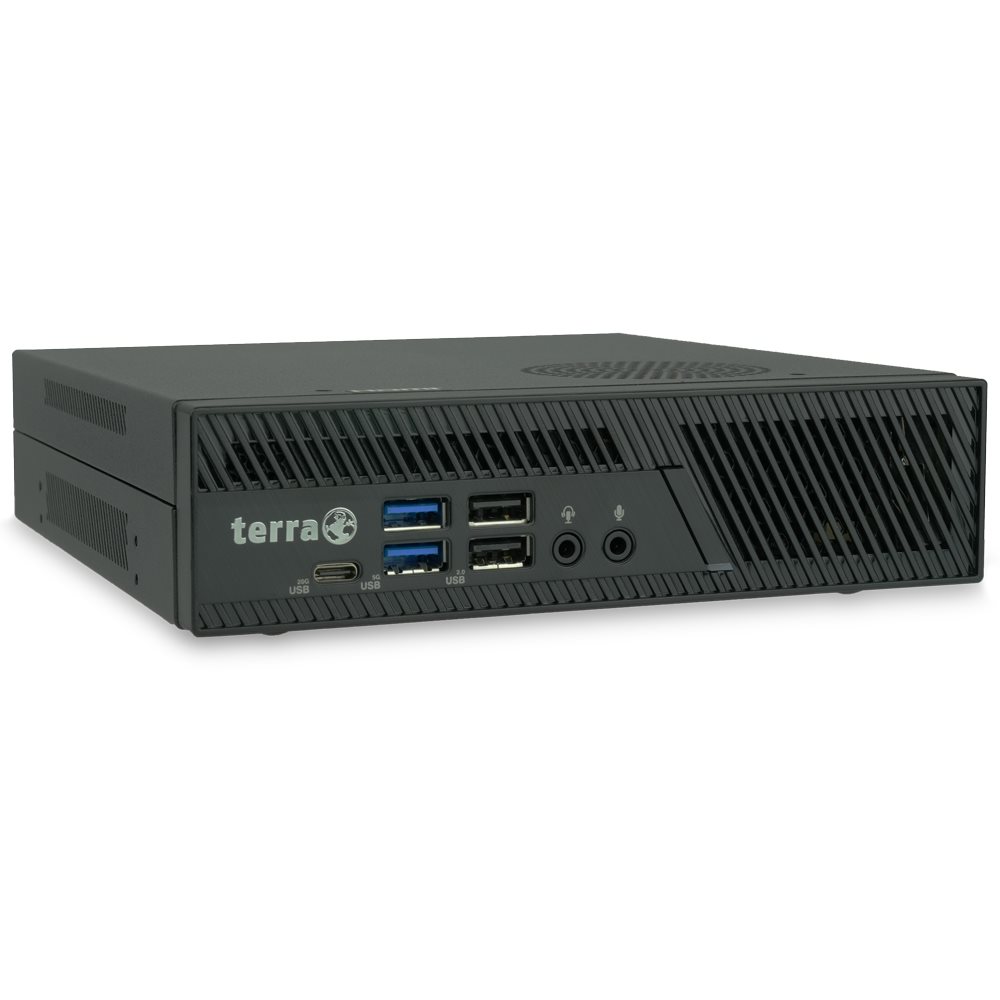

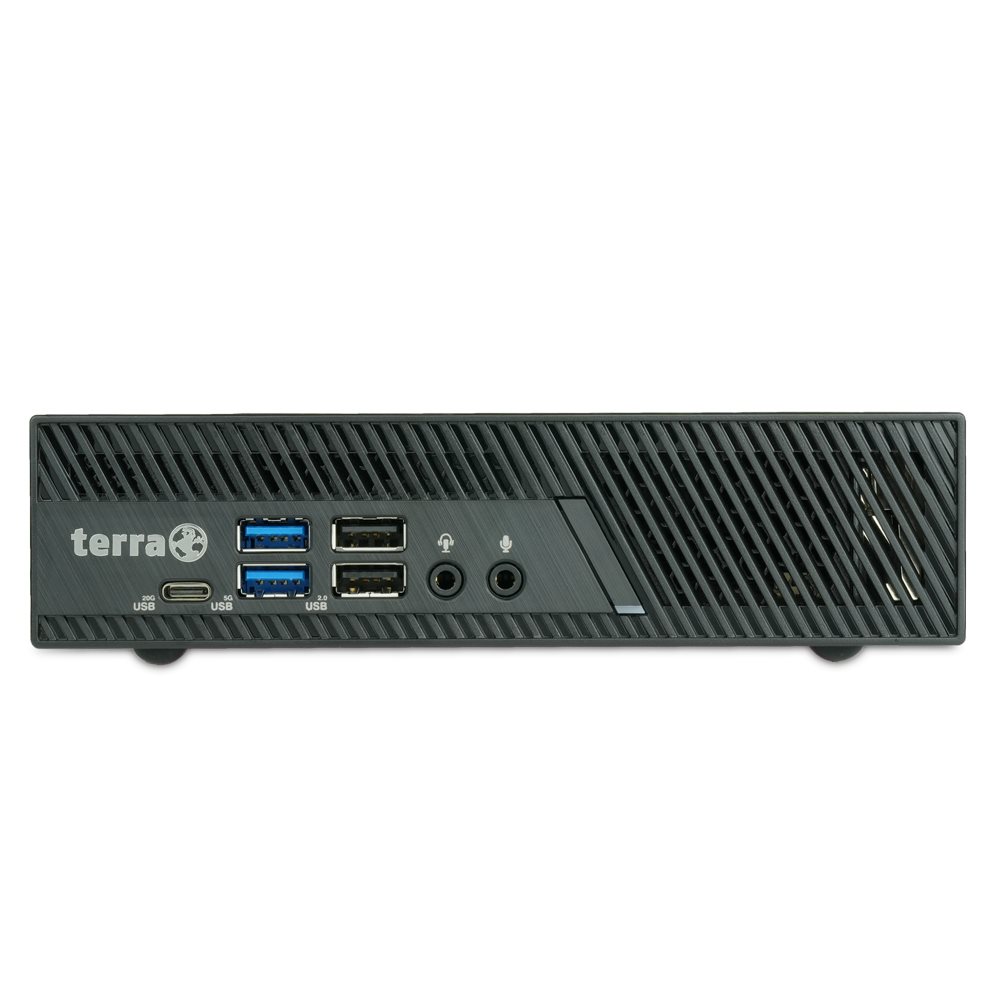

| Interface | Front: 2x USB 3.2 Type-A, 1x USB 3.2 Type-C, 2x USB 2.0 Type-A, 1x Audio¦ Rear: 2x USB 3.2 Type-A, 1x USB 2.0 Type-A. 1x LAN, DC-in, 2x DP 1.4, 1x HDMI (exchangeable with COM or 2nd LAN port), 1x Kensington Lock, 1x WiFi Antennen Port |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Compliance industry standards | This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms |
| Special features | 1 watt internal speaker ¦ Secure Boot ¦ TPM 2.0 ¦ Microsoft Autopilot-ready ¦ Barbone MIL-STD-810H ¦ Barebone 24-7 ready ¦ Option: Dust filter |
| Category: Mouse | |
| Mouse included | Optional |
| Category: Graphics | |
| On-board graphics adapter memory | Dynamisch |
| On-board graphics adapter maximum resolution | HDMI 4096×2160 @ 60Hz (4K), Display Port 3840×2160 @ 60Hz (4K) |
| Graphics card | Intel UHD Graphics 730 (1130 MHz) |
| On-board graphics card model | Intel UHD Graphics 730 (1130 MHz) |
| Graphics adapter ports | 2x Display Port 1.4, 1x HDMI 2.0 |
| Category: Power | |
| Power source | External fanless power supply ¦ Efficiency : > 87% |
| Power consumption (standby) | Ø 1.70 Watt (S3 Mode. Suspend to RAM. WOL aktiviert) ¦ 0.40 Watt Soft off (S5 Mode) |
| Maximum input power | 150 Watt |
| Nominal power | Ø 10 Watt Idle-Mode ¦ Ø 40 kWh pro Jahr (TEC = Typical Energy Consumption) ¦ Weitere Informationen zur Leistungsaufnahme siehe http://www.wortmann.de/green und/ oder in den Quicklinks zu diesem Produkt (sofern vorhanden) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 5 °C – 50 °C ¦ Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Maximum operating temperature range (T-T) | 50 °C ¦ Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Recommended humidity operating range | 10 – 80% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | Intel I219V, WOL/PXE |
| Wi-Fi standards | Intel AX211 Wi-Fi 6E (802.11ax)¦ Bluetooth 5.3 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 1Gb Ethernet, IEEE 802.11ax ¦ Bluetooth 5.3 |
| Category: Optical drive | |
| Optical drive type | Ohne optisches Laufwerk |
| Category: Input device | |
| Device interface | USB ¦ Note: Keyboard not included |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
