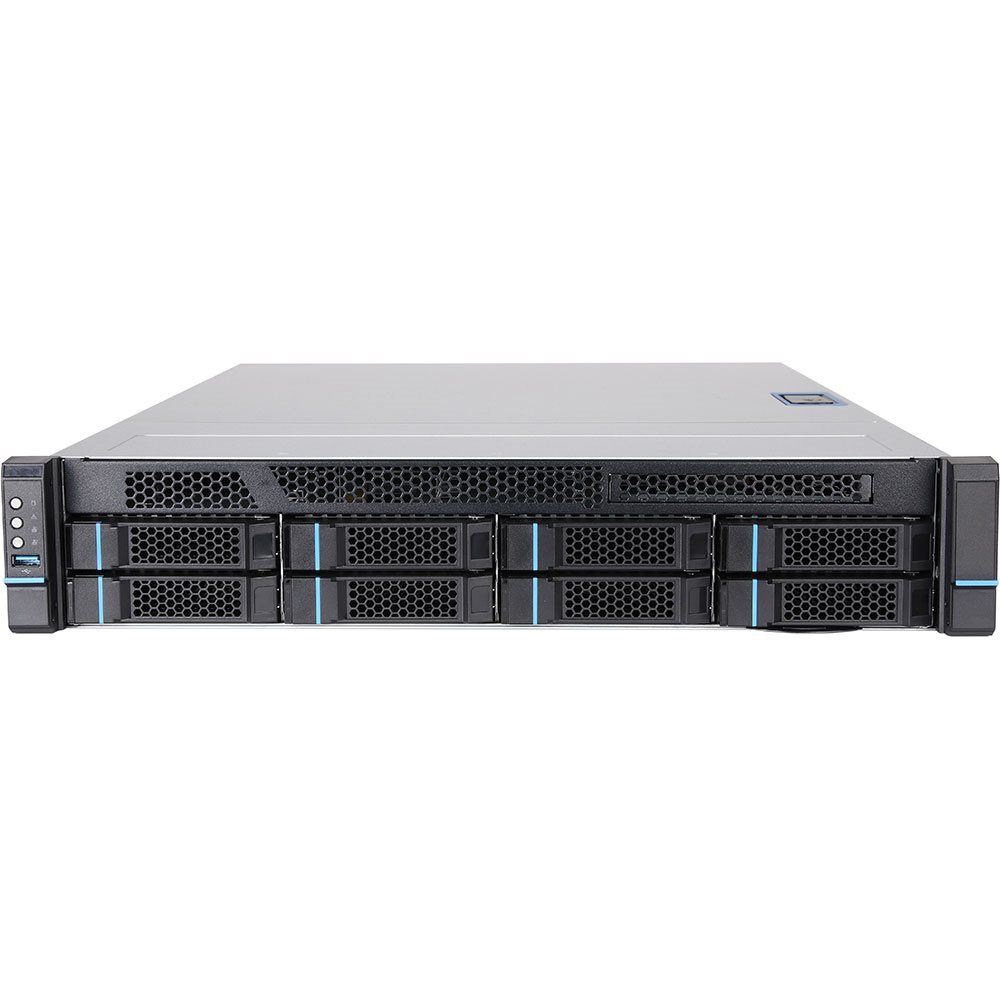

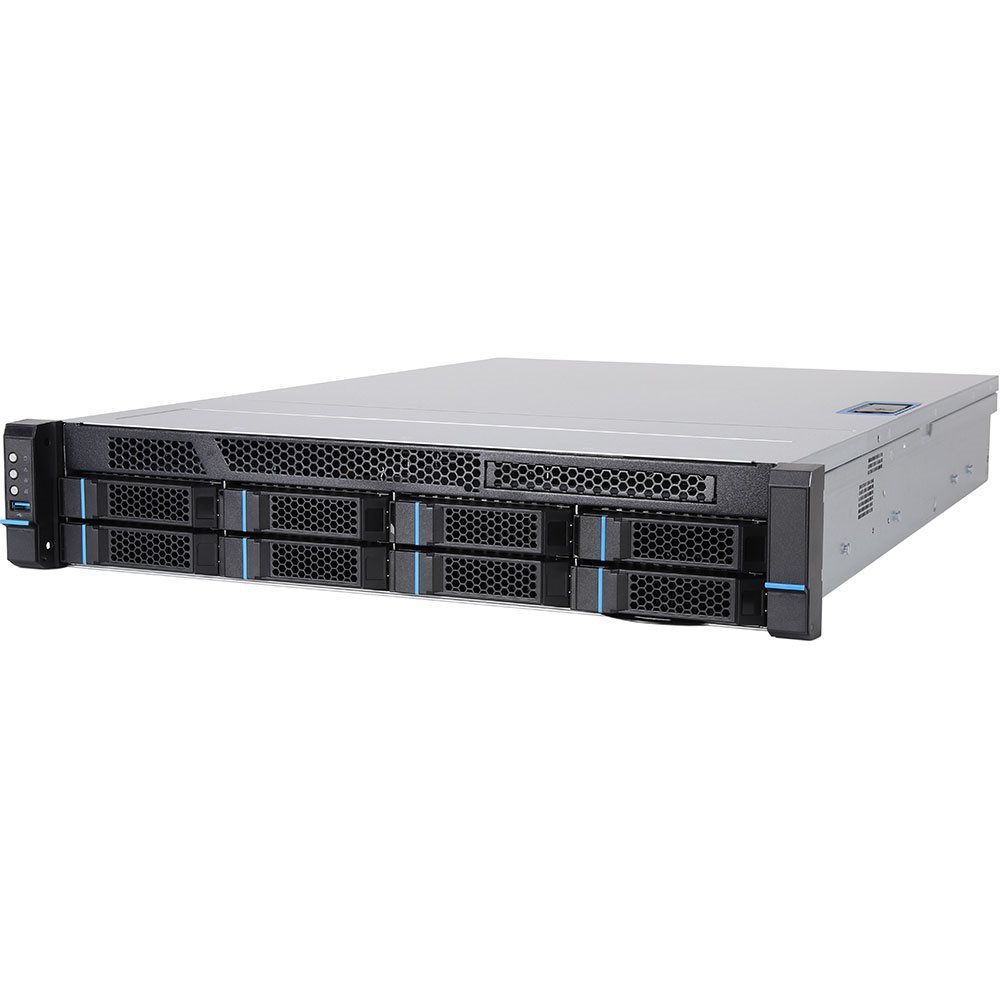

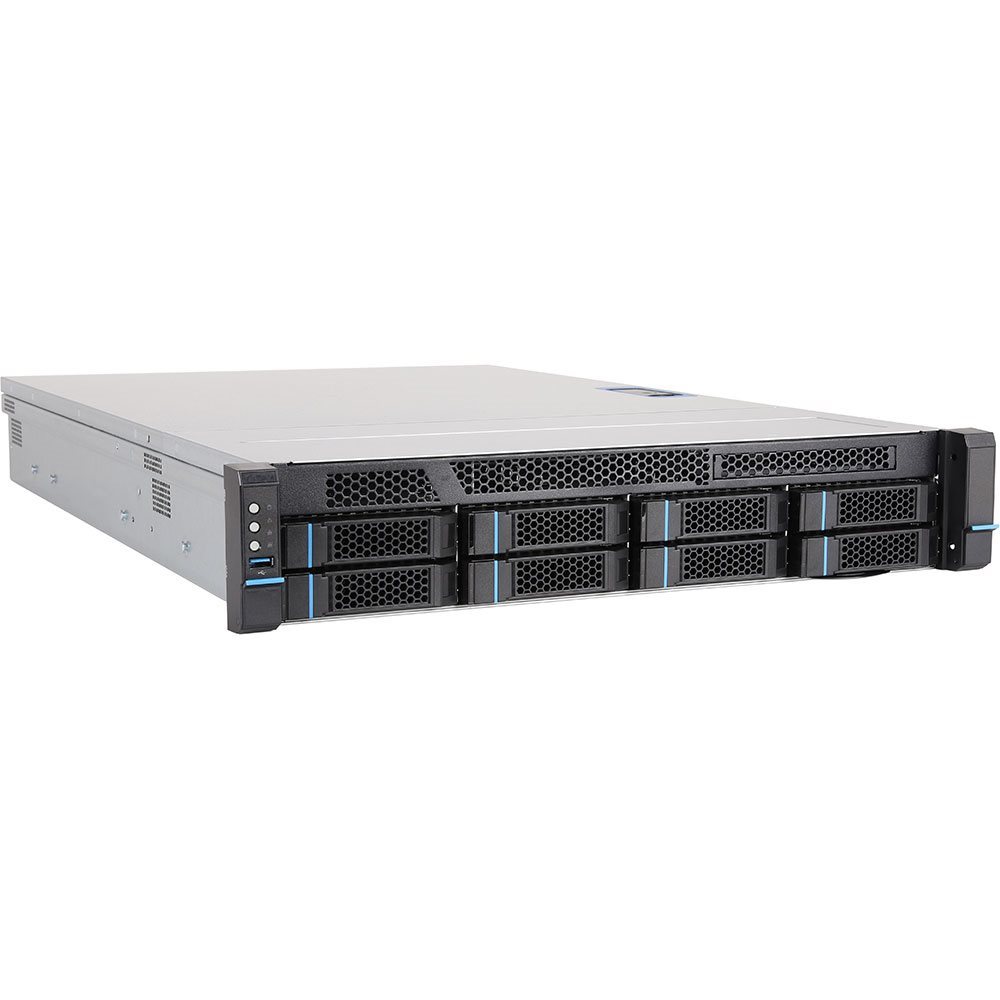

Xeon 6337P (18 MB cache, 6x 3.50 GHz) | Chenbro RM23808 2HE RACK, 700 Watt power supply | Incl. Rails | 1x 32 GB DDR5 UB ECC RAM, 2x 960 GB SATA SSD (RAID 1) | Broadcom MegaRAID 9560-8i with 4 GB cache | (RAID 0/1/10/5/50/6/60) | (!) w/o DVD burner | 2x 1 GbE LAN, 1x Mgmt LAN, TPM | Grafic onboard (VGA) | (!) w/o keyboard and mouse | (!) w/o operating system
€ 5'489.00
Out of stock
| Category: Processor | |
|---|---|
| L3 cache | 18 |
| Processor family | 1-CPU / Xeon UP |
| Processor cores | 6-Core |
| Processor frequency | 3.5 |
| Number of processors | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA1700 |
| Motherboard chipset | Intel C266 |
| Category: General | |
| Processor model | Intel Xeon 6337P / 3.50 GHz |
| Operating system | No operating system |
| Category: Performance | |
| Series | SERVER 3000 |
| Compatible operating systems | Windows Server 2025¦ |
| Channels quantity | 8 |
| Category: Memory | |
| Internal memory | 32 |
| Maximum internal memory | 128 |
| Internal memory type | DDR5 ECC UB RAM |
| Memory slots | 4x DDR5 PC4400, UB ECC |
| Memory channels | Dual-Channel-Memory-Architecture |
| Category: Storage | |
| Optical drive type | Optional |
| RAID levels | RAID 1 |
| Number of storage drives installed | 2 |
| Internal drive bays | 8x 3.5"/2.5" |
| Total storage capacity | 1920 |
| SSD interface | SATA 6Gb/s |
| HDD capacity | 2x 960 GB SSD |
| Storage media type | SSD SATA |
| Category: Design | |
| Certification | CE, production according to ISO9001 in Germany |
| Rack mounting | 2 |
| Chassis type | Rack |
| Category: Power | |
| Power source | Power supply |
| Redundant power supply (RPS) support | Optional |
| Maximum input power | 700 |
| Number of power supply units | 1 |
| AC adapter input voltage | 100-240 V~ / 50-60 Hz |
| Category: Mouse | |
| Mouse included | Optional |
| Category: Keyboard | |
| Keyboard form factor | Optional |
| Category: Network | |
| Ethernet LAN | Integrated |
| LAN controller | Intel I210-AT2 |
| Cabling technology | 2x 1 GbE (RJ45) |
| Category: Other features | |
| Number of drive bays | Slot 1: PCIe 4.0 x8 @ x4 ¦ Slot 2: PCIe 4.0 x8 @ x4 ¦ Slot 3: PCIe 5.0 x8 @ x8 ¦ Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied |
| Drive bays | 1x Slim 5.25" |
| Interface | 1x VGA ¦ 2x LAN (RJ-45) ¦ 1x Mgmt LAN ¦ 5x USB 3.2 Gen2 (1x internal) ¦ 1x USB 3.2 Gen1 (1x front) ¦ 2x USB 2.0 ¦ option: 1x serial |
| Motherboard manufacturer | Asus P13R-E |
| Remote administration | Yes |
| Hard disk controller | Broadcom MegaRAID 9560-8i |
| Category: Technical details | |
| Localization | International |
| Optional on-site service | 24h On-Site-Service + DMR¦ |
| Category: Weight & dimensions | |
| Height | 8.7 |
| Width | 43.8 |
| Depth | 66 |
| Category: Cooling | |
| Cooling type | Active |
| Category: Graphics | |
| Graphics adapter ports | VGA |
| Maximum graphics adapter memory | 64 |
| Graphics card | Aspeed AST2600 |
| Category: Operational conditions | |
| Operating temperature (T-T) | 10 °C – 35 °C (recommendation: 20 °C – 22 °C) |
| Recommended humidity operating range | 10-75% (non-condensing) |
