€ 6'209.00
Out of stock
| Category: General | |
|---|---|
| Processor model | AMD Ryzen™ Threadripper™ 7970X STR5 |
| Operating system | Windows 11 Pro |
| Category: Processor | |
| Processor family | AMD Ryzen Threadripper |
| Processor cores | 24-Core |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 32 |
| Memory layout (slots x size) | 2 x 16 GB |
| Maximum internal memory | 128 |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 |
| Category: Storage | |
| Total storage capacity | 500 |
| HDD interface | 4 x SATA-3 (6 Gb/s) |
| RAID levels | RAID 10 |
| Card reader integrated | Not available |
| SSD interface | PCIe 5.0 |
| SSD capacity | 500 |
| HDD capacity | 1x 500 GB NVMe SSD |
| Number of storage drives supported | 4 x SATA-3 (6 Gb/s) ¦ 3 x M.2 ¦ 1 x U.2 |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Workstation |
| Nivel de ruido | 25.9 dBA |
| Audio output channels | 5.1 HD Audio Codec |
| Motherboard chipset | AMD TRX50 |
| Category: Design | |

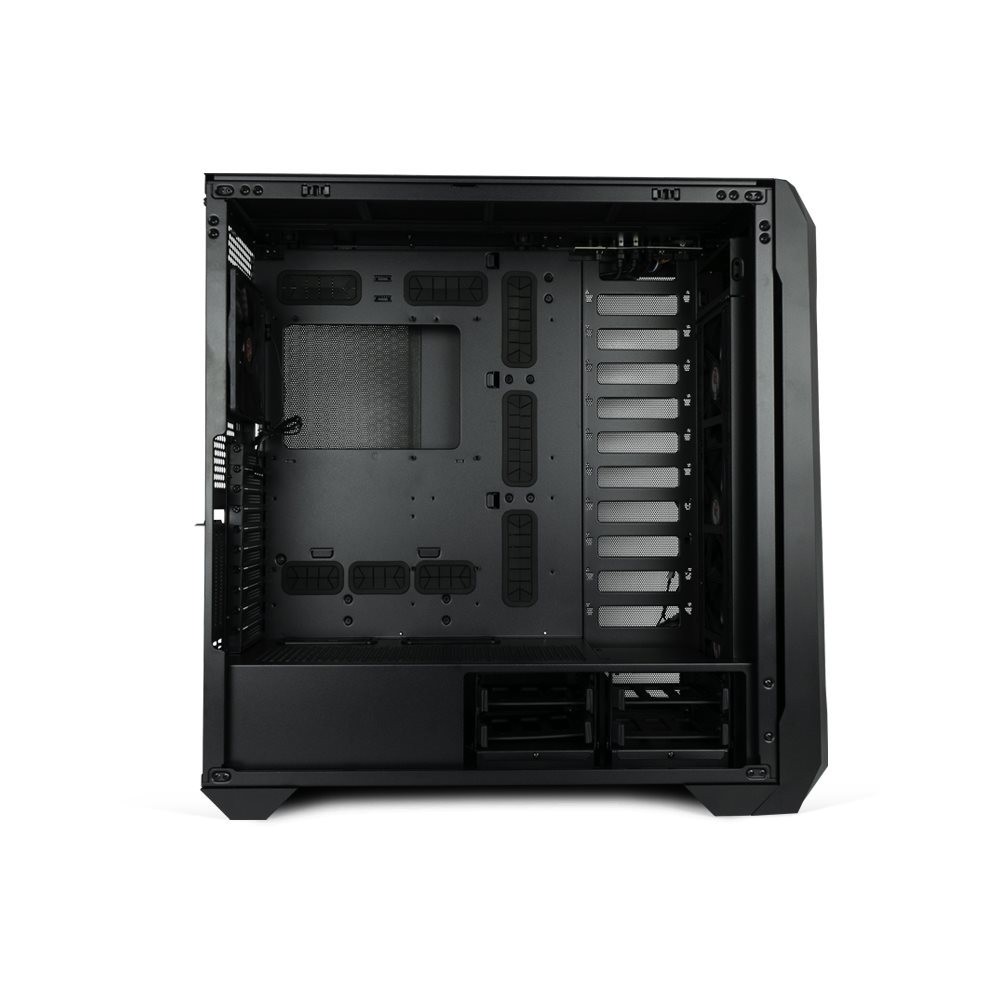

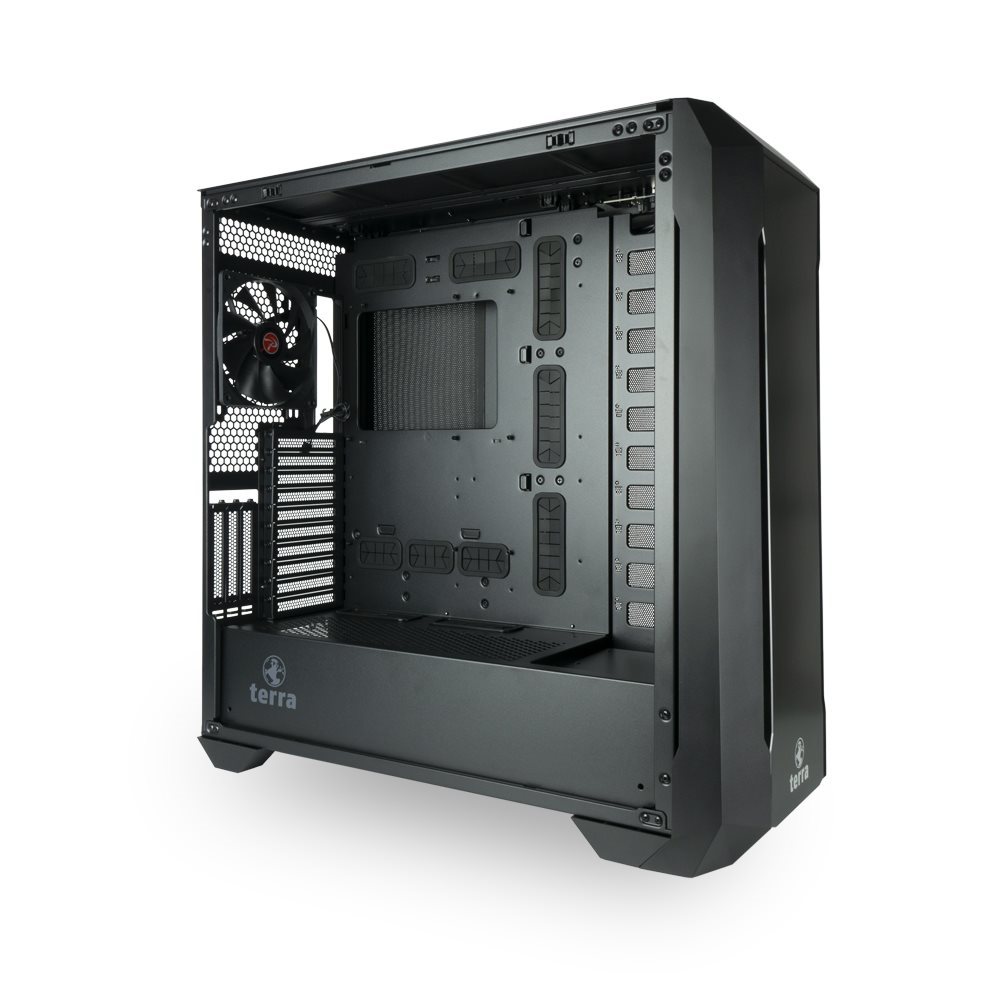

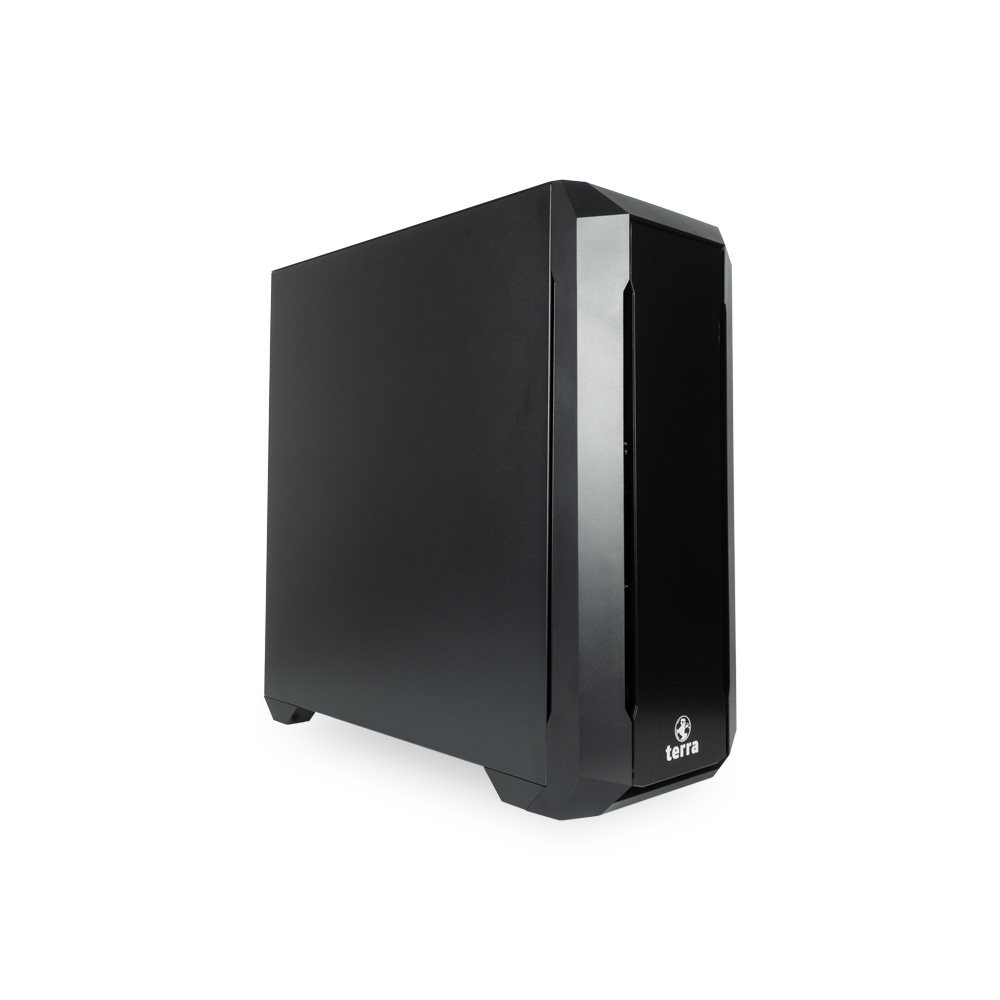

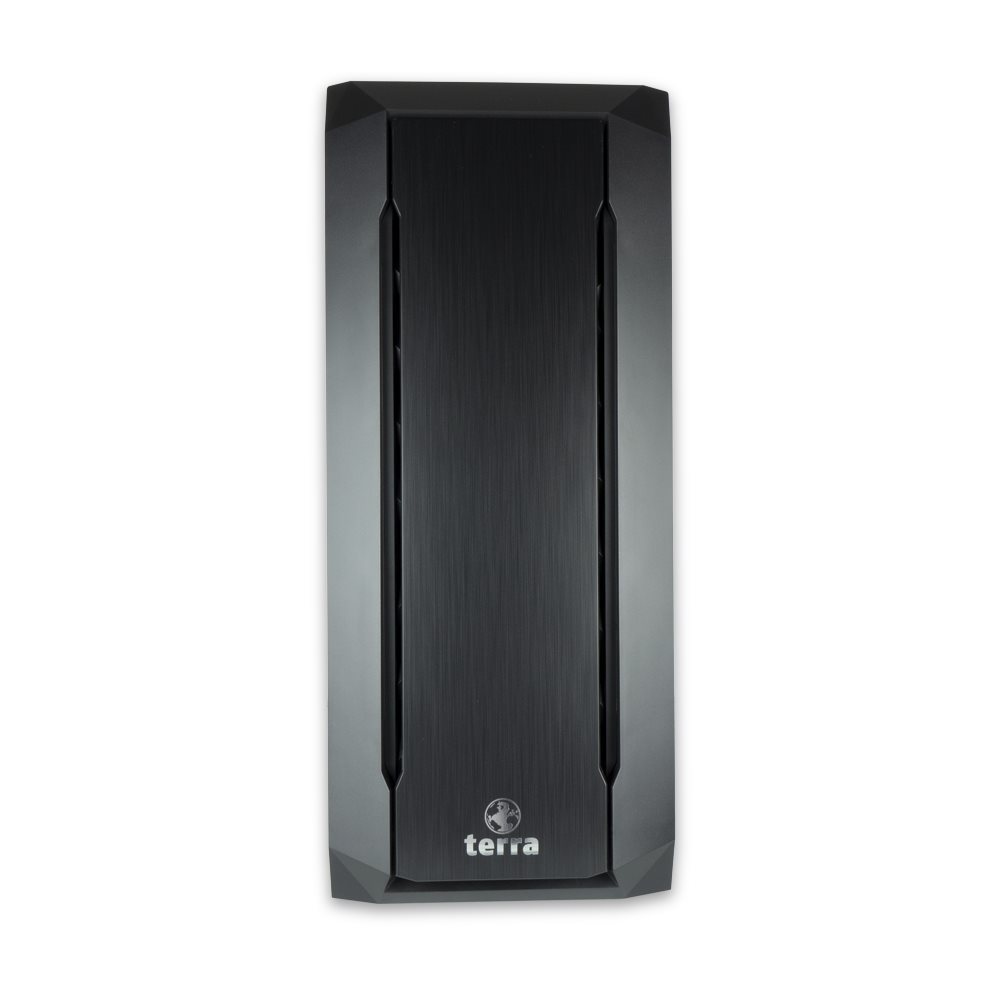

| Chassis type | Tower |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Keyboard form factor | Optional |
| Category: Keyboard | |
| Keyboard language | International |
| Device interface | USB |
| Category: Technical details | |
| Localization | International |
| Field of use | Revit |
| Category: Packaging content | |
| Included Accessories | Manual (DE/ EN/ FR/ PL), powercord EU |
| Category: Expansion slots | |
| Expansion slots | 2 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot(x8 mode)1 x PCIe 4.0 x16 slot1 x PCIe 4.0 x16 slot(x4 mode) |
| Category: Weight & dimensions | |
| Height | 59.7 |
| Width | 25.4 |
| Depth | 59.8 |
| Category: Other features | |
| Number of drive bays | 1 front – 13.3 cm ( 5.25" ) ¦ 4 internal – 8.9 cm ( 3.5"/ 2.5" with Adapter) ¦ 5 internal 6.4 cm (2.5" SSD) |
| Interface | 1 x LAN (RJ45), 1 x S/PDIF-Out (optic), 5 x Audio-IO ¦ 2 x USB 3.2 Gen 2 (1x type-A + 1x type-C), 1 x USB 3.2 Gen 2 type-C front ¦ 6 x USB 3.2 Gen1 (2x vorne), 2 x USB 2.0 |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany ¦Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Category: Mouse | |
| Mouse included | TERRA wheel mouse optical |
| Category: Graphics | |
| On-board graphics adapter memory | 5 GB |
| On-board graphics adapter maximum resolution | Digital Max Auflösung: 5120×2880 |
| Graphics card | NVIDIA Quadro P2200 |
| On-board graphics card model | PCI Express – plug-in-card – activ cooling – single slot ¦ NVIDIA Quadro P2000 |
| Graphics adapter ports | 4x mDP |
| Category: Power | |
| Power source | ATX Netzteil 80 Plus Gold, 24-7 Dauerbetrieb geeignet ¦ Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 % |
| Maximum input power | 650 Watt |
| Nominal power | Ø 50 Watt Idle-Mode ¦ Ø 176 kWh a year (TEC = Typical Energy Consumption) ¦ Further information regarding Energy consumption see http://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 10 °C – 35 °C |
| Maximum operating temperature range (T-T) | 35 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | Marvell AQtion 10GB ¦ Intel I226-LM 2.5GB |
| Data link protocols | Ethernet ¦ Fast Ethernet ¦ Gigabit Ethernet |
| Category: Input device | |
| Movement detection technology | Optical |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Category: Notes | |
| Additional Information | *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device. |
