€ 6'809.00
Out of stock
| Category: General | |
|---|---|
| Processor model | Intel Xeon W5-3425/12×3.2/30MB Cache |
| Operating system | Windows 11 Pro for Workstations |
| Category: Processor | |
| Processor family | Xeon |
| Processor cores | 12-Core |
| Processor socket | FCLGA4677 Socket |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 32 |
| Memory layout (slots x size) | 2 x 16 GB REG ECC |
| Maximum internal memory | 2048 |
| Internal memory type | REG DDR5 ECC |
| Memory slots | 4 |
| Memory form factor | DIMM 240-PIN |
| Category: Storage | |
| Total storage capacity | 500 |
| HDD interface | 4x SATA 6Gb/s ports ¦ 1x M.2 slot (PCIe 4.0 x4/ available with 11th Gen CPU only) ¦ 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| RAID levels | RAID 5 |
| SSD interface | PCIe 4.0 |
| SSD capacity | 500 |
| HDD capacity | 1 x 500 GB – SSD |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Workstation |
| Audio output channels | 8-channel |
| Motherboard chipset | Intel W790 |
| Category: Design | |

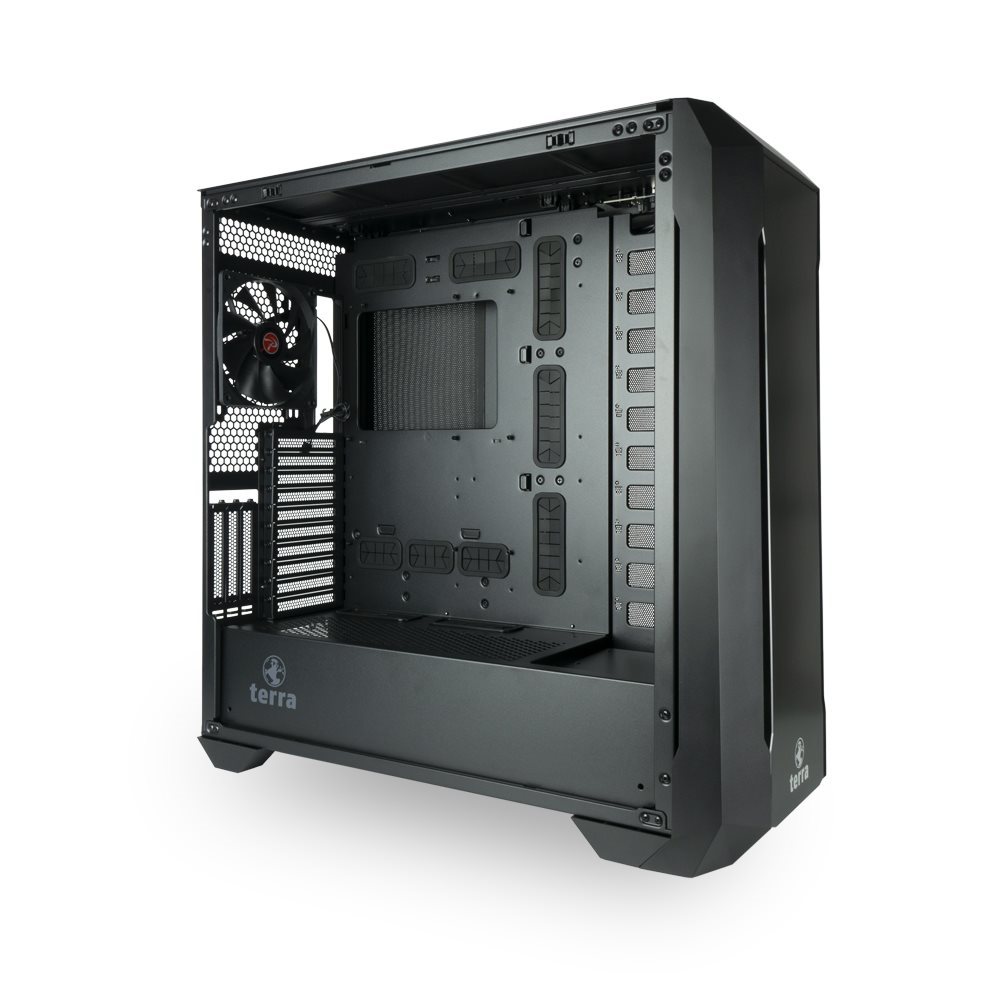

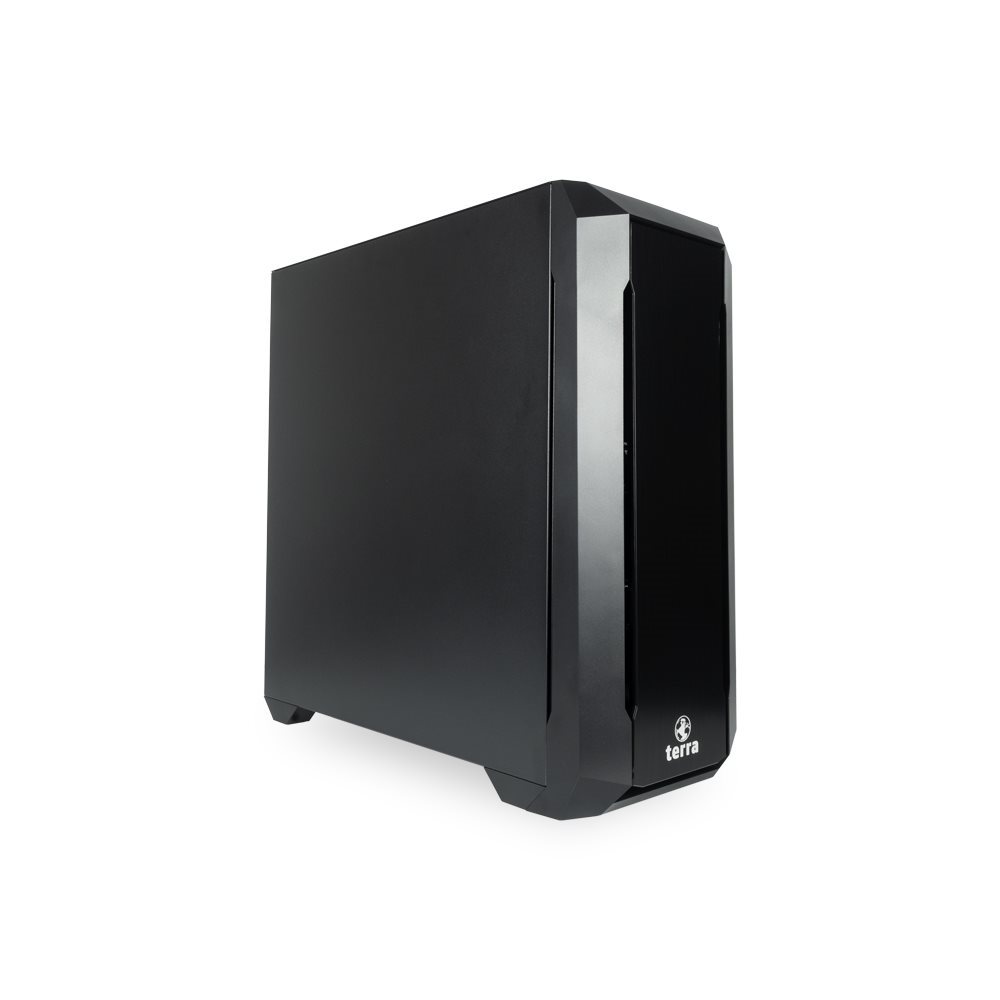

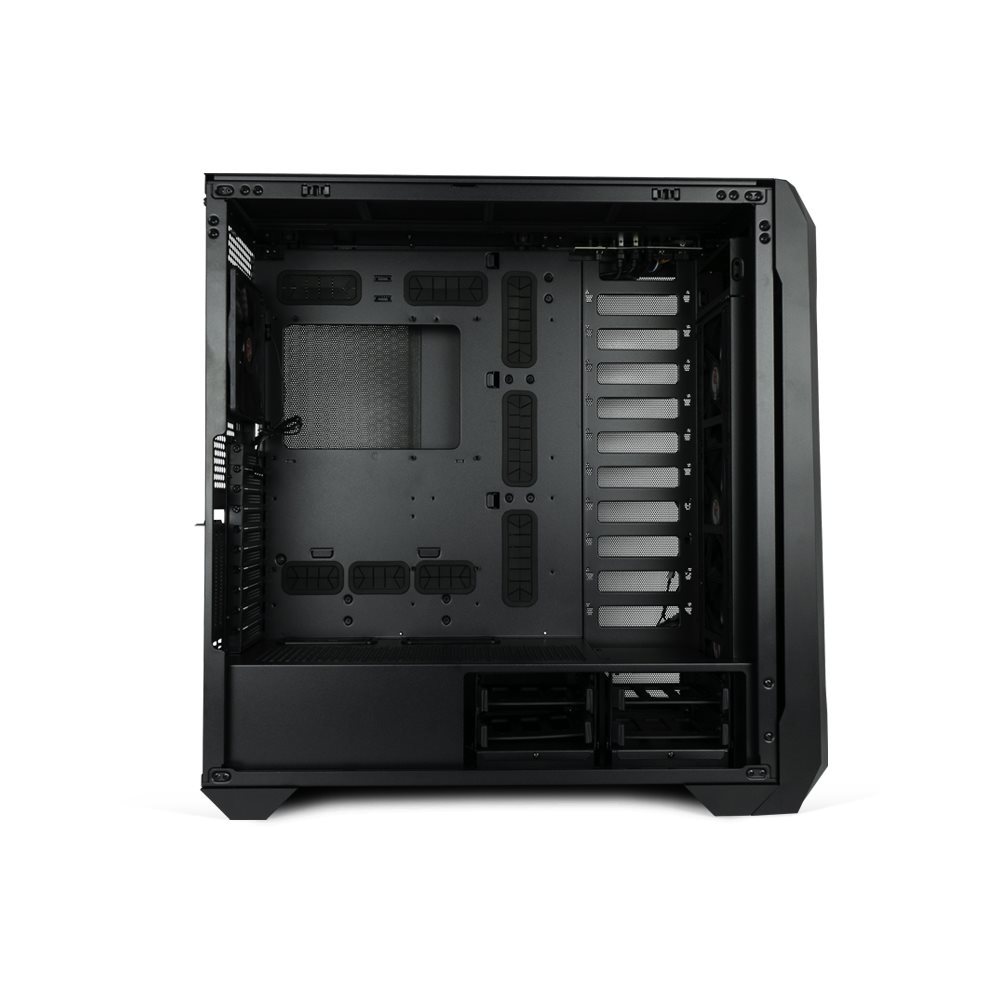

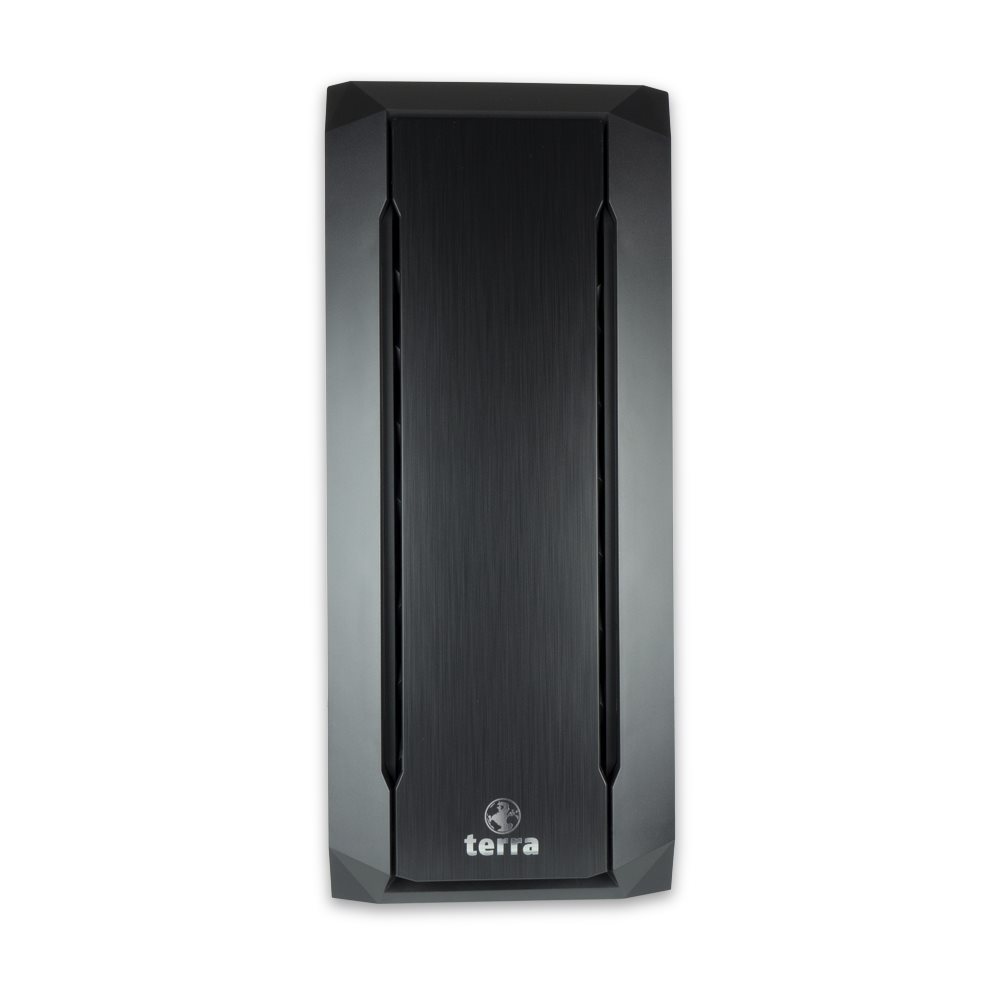

| Chassis type | Tower |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Keyboard form factor | Optional |
| Category: Keyboard | |
| Keyboard language | International |
| Device interface | USB |
| Category: Technical details | |
| Localization | International |
| Field of use | Autodesk AutoCAD ¦ |
| Category: Weight & dimensions | |
| Height | 59.7 |
| Width | 25.4 |
| Depth | 59.8 |
| Weight | 21.5 |
| Category: Other features | |
| Compatible operating systems | Windows 10 (64-Bit) ¦ Windows 11 (64-Bit) ¦ Unsupported OS by WAG: Linux (64-Bit) |
| Motherboard manufacturer | Asus Pro WS W790-ACE |
| Cooling type | Active |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany ¦Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Special features | TPM 2.0 ¦ Secure Boot ¦ Windows Autopilot-ready |
| Category: Mouse | |
| Mouse included | TERRA wheel mouse optical |
| Category: Graphics | |
| On-board graphics adapter memory | 2 GB |
| Graphics card | NVIDIA 16GB RTX 2000 ADA Professional Graphics (by PNY) |
| Graphics adapter ports | 4x mDP |
| Category: Power | |
| Power source | ATX Netzteil 80 Plus Gold, 24-7 Dauerbetrieb geeignet ¦ Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 % |
| Maximum input power | 650 Watt |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 10 °C – 32 °C |
| Maximum operating temperature range (T-T) | 32 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | Realtek 2.5Gb Ethernet |
| Category: Input device | |
| Movement detection technology | Optical |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
