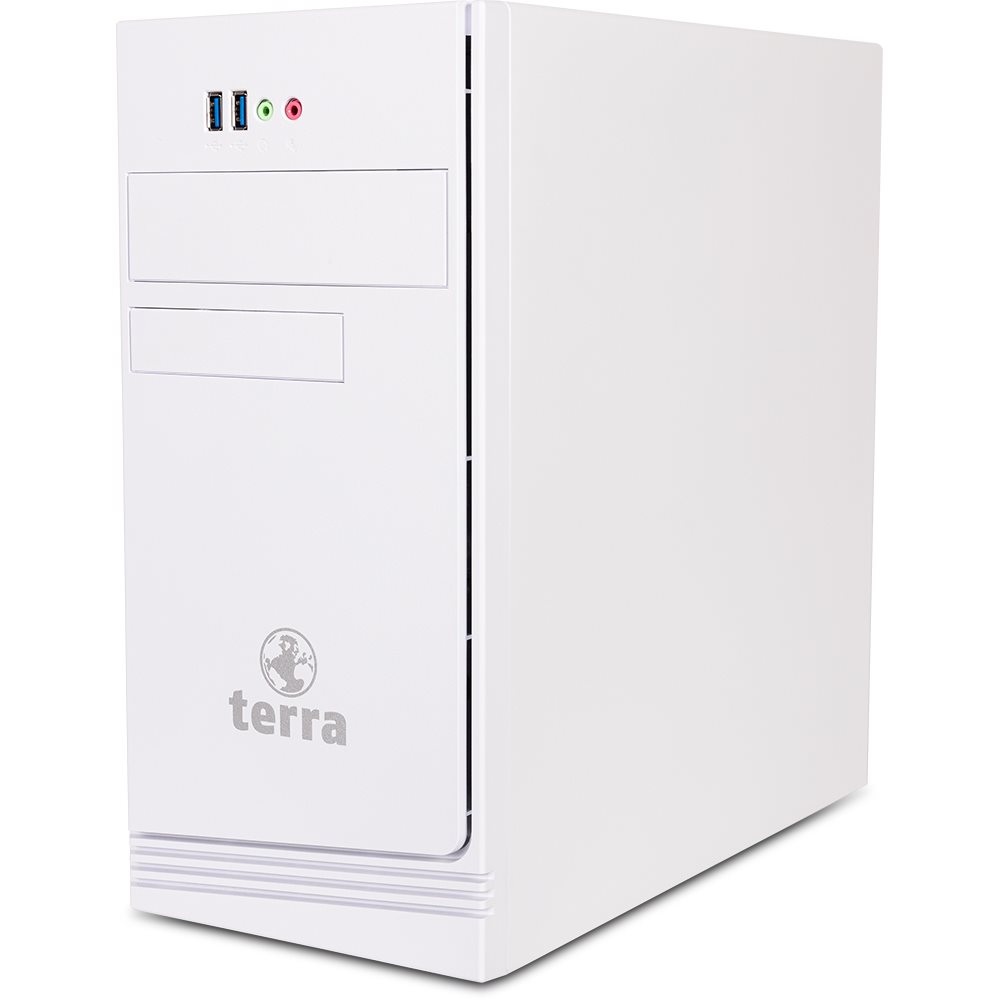

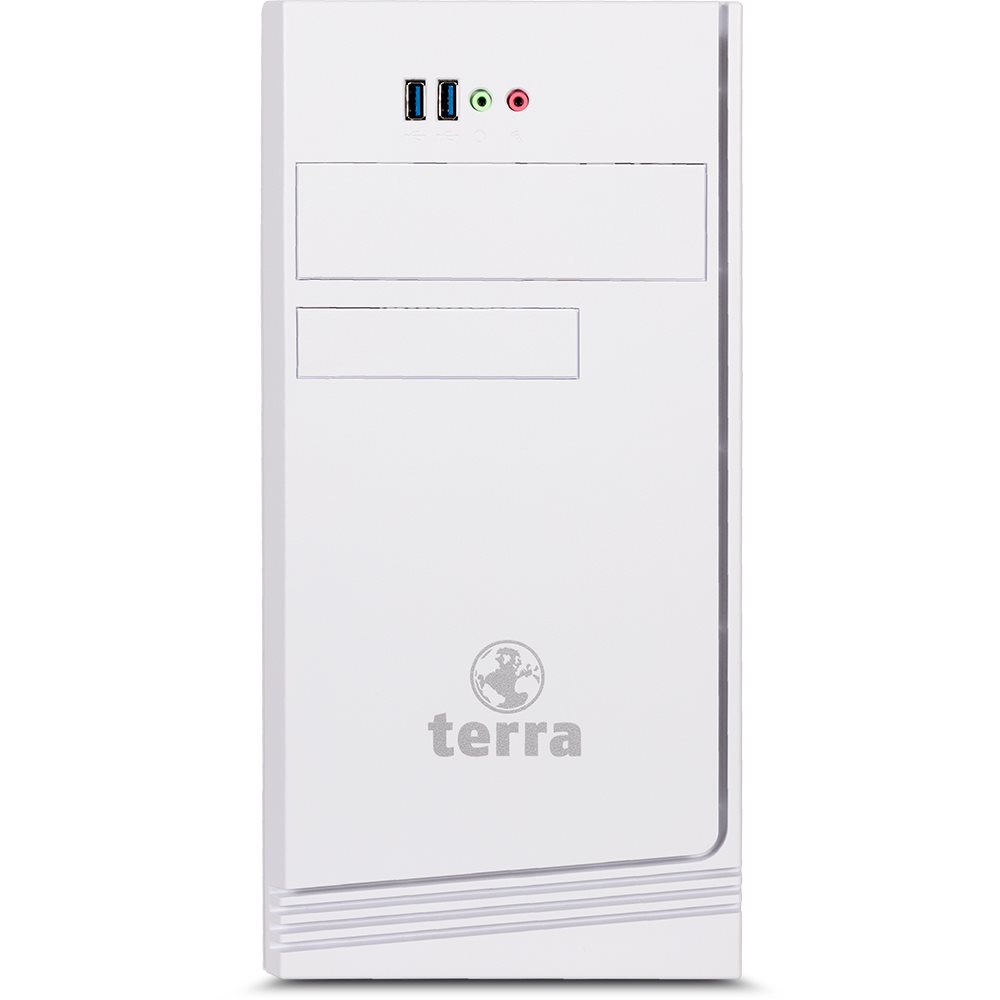

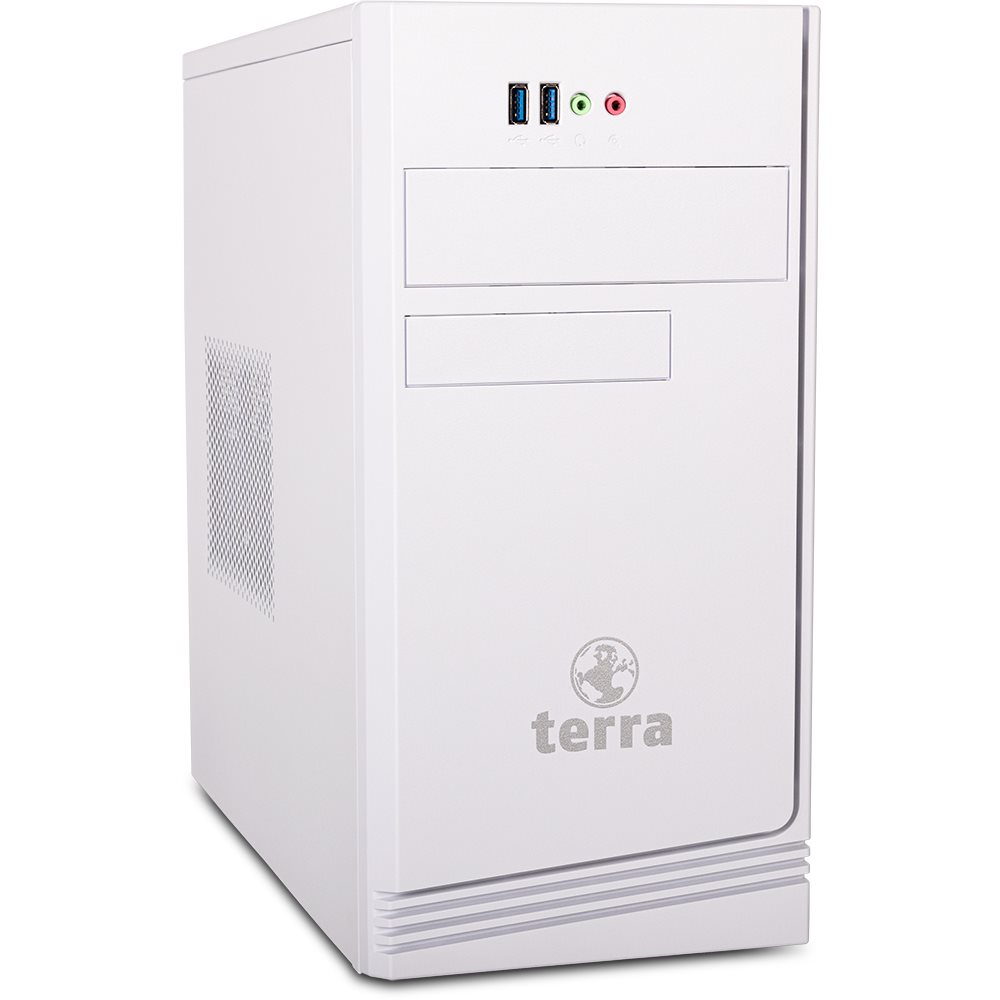

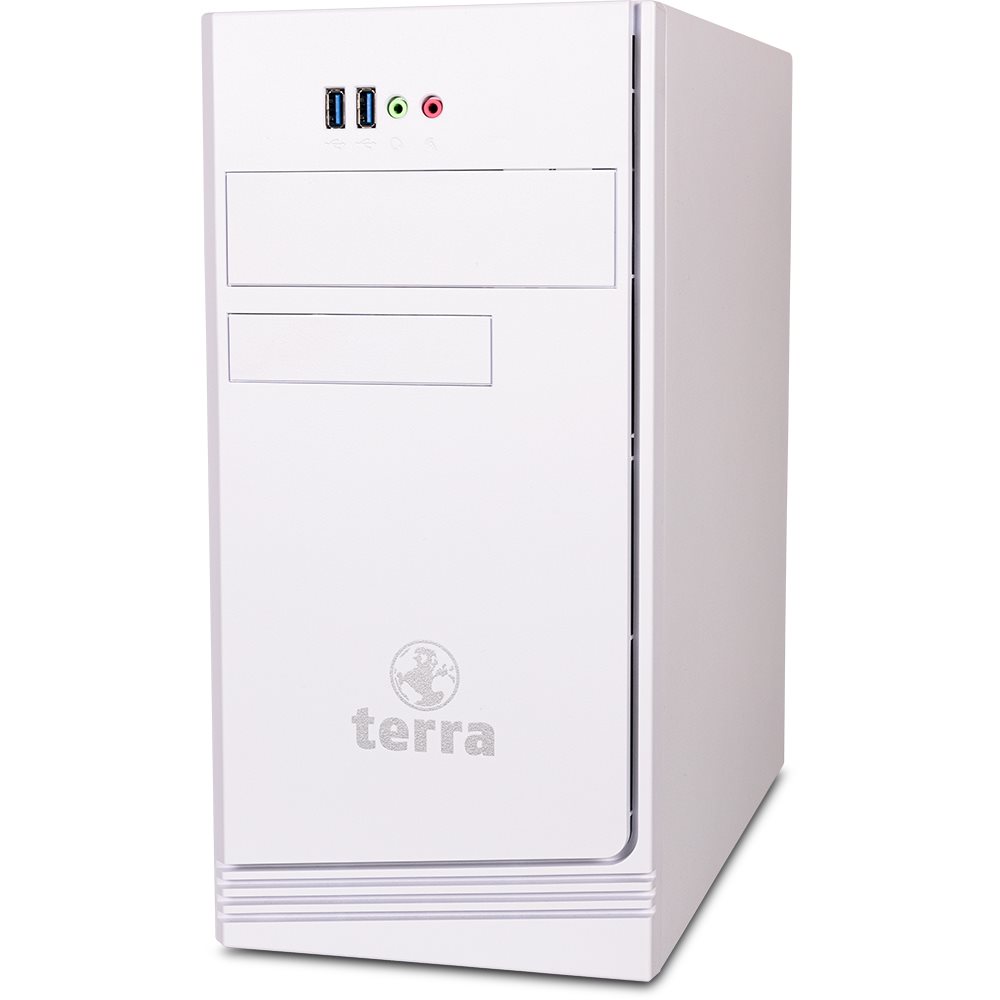

Intel Core Ultra 5 225 (up to 4.9 GHz), Mini-Tower PC312 white | 16 GB DDR5-RAM, 500 GB M.2-SSD PCIe, GbE-LAN, no ODD | Intel Graphics (2x DP, 1x HDMI) | supports up to 3x Displays | Wheel mouse optical | Windows 11 Pro, Microsoft Office trial | ! Option: : Keyboard & Powercord UK
€ 959.00
12 in stock
| Category: General | |
|---|---|
| Processor model | Intel® Core Ultra 5 225 (20M Cache, up to 4.90 GHz, 10 Cores, 10 Threads) |
| Operating system | Windows 11 Pro |
| Category: Processor | |
| Processor family | Intel® Core™ Ultra 5 Processor |
| Processor cores | Deka-Core (10 Cores) |
| Processor socket | FCLGA1851 Socket |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 16 |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 256 |
| Memory clock speed | PC5600 |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 |
| Memory form factor | DIMM, 288-PIN |
| Category: Storage | |
| Total storage capacity | 500 |
| HDD interface | 2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode) ¦ 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10 |
| RAID levels | RAID 0 ¦ RAID 1 ¦ RAID 5 ¦ RAID 10 |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 |
| HDD capacity | 1 x 500 GB – SSD |
| Number of storage drives supported | 6 |
| Storage media | SSD M.2 |
| Category: Performance | |
| Series | Business |
| Product type | Personal-Computer |
| Nivel de ruido | 0,8 Sone (Idle Mode) ¦ 0,8 Sone (Operation Mode) |
| Audio output channels | 8-channel |
| Motherboard chipset | Intel B860 |
| Audio system | High Definition Audio |
| Category: Design | |
| Chassis type | Mini tower |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Option. Keyboard not included |
| Category: Technical details | |
| Localization | International |
| Category: Packaging content | |
| Included Accessories | Quick Start Guide, Powercord EU |
| Keyboard language | Option. Keyboard not included |
| Category: Expansion slots | |
| Expansion slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1 |
| Category: Weight & dimensions | |
| Height | 37.5 |
| Width | 18 |
| Depth | 38.4 |
| Weight | 7 |
| Category: Other features | |
| Number of drive bays | 1 front – 13.3 cm ( 5.25" ) ¦ 1 front – 8.9 cm ( 3.5" ) ¦ 1 internal – 8.9 cm ( 3.5"/ 2.5" with adapter)* ¦ 1 internal 6.4 cm (for 2.5" SSD) ¦ *Depending on production batch, installation basket for additional drives optional |
| Interface | Front: 2x USB A, Audio; back: 1x USB C, 1x USB A 3.2, 2x USB 2.0, 2x DP; 1x HDMI; 2x PS/2; 1x RJ-45, 3x Audio |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | ASUS Pro B860M-C-CSM 24/7 ready |
| Cooling type | Active |
| Special features | TPM 2.0 ¦ Secure Boot ¦ Windows Autopilot ready ¦ 2x USB 3.2 Gen1 Typ A + Audio in Front |
| Category: Mouse | |
| Mouse included | Terra wheel mouse optical |
| Category: Graphics | |
| On-board graphics adapter memory | Dynamisch |
| On-board graphics adapter maximum resolution | HDMI max. 4096 x 2160 @ 60Hz ¦ DP max. 7680 x 4320 @30Hz |
| Graphics card | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Graphics adapter ports | 1x HDMI, 2x DP (Display Port) ¦ Supports Triple-Monitoring |
| Category: Power | |
| Power source | ATX power supply. Meets 80-plus Bronce ¦ Eligible for regular business use max. 60h/ week ¦ Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 % |
| Power consumption (standby) | Ø 1.6 Watt (S3 Mode, Suspend to RAM, WOL aktiviert) ¦ 0,30 Watt Soft off (S5 Mode) |
| Maximum input power | 400 Watt |
| Nominal power | Ø 23 Watt Long Idle-Mode ¦ Ø 95 kWh a year (TEC = Typical Energy Consumption) ¦ Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 230V ( 50 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 5 °C – 35 °C |
| Maximum operating temperature range (T-T) | 35 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Category: Keyboard | |
| Device interface | USB ¦ Note: Keyboard not included |
| Category: Network | |
| Ethernet LAN | LAN adapter RJ45 integrated |
| LAN controller | Intel I219V, WOL/PXE |
| Data link protocols | Ethernet ¦ Fast Ethernet ¦ Gigabit Ethernet |
| Category: Optical drive | |
| Optical drive type | Ohne optisches Laufwerk |
| Category: Input device | |
| Movement detection technology | Optical |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
