–>> Is only being built via BTO process !
€ 2'389.00
Out of stock
| Category: General | |
|---|---|
| Processor model | Intel Core i7 (14. Gen.) 14700 / 33 MB Intel Smart Cache, max. Turbo-Frequency 5.4 GHz) |
| Operating system | Windows 11 Pro |
| Category: Processor | |
| Processor family | Core i7 |
| Processor cores | 20-Core |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Category: Memory | |
| Internal memory | 16 |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 |
| Memory clock speed | PC4800 |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 |
| Memory form factor | DIMM 240-PIN |
| Category: Storage | |
| Total storage capacity | 480 |
| HDD interface | 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10¦ • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support |
| RAID levels | RAID 5 |
| SSD interface | SATA-3 |
| SSD capacity | 480 |
| HDD capacity | 1x 480 GB SSD |
| Number of storage drives supported | 7 |
| Storage media | SSD 2.5" |
| Category: Performance | |
| Series | Industry |
| Audio output channels | 5.1 HD Audio Codec |
| Motherboard chipset | Intel R680E |
| Category: Design | |

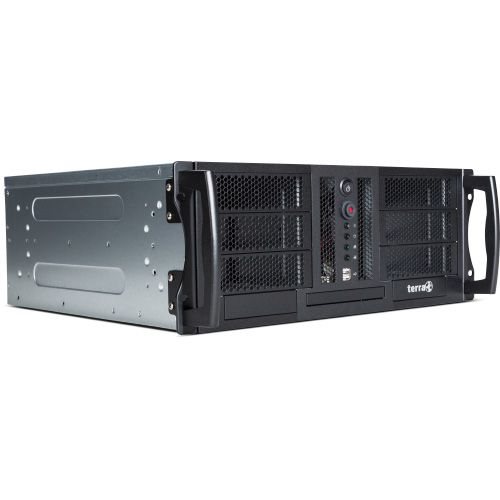

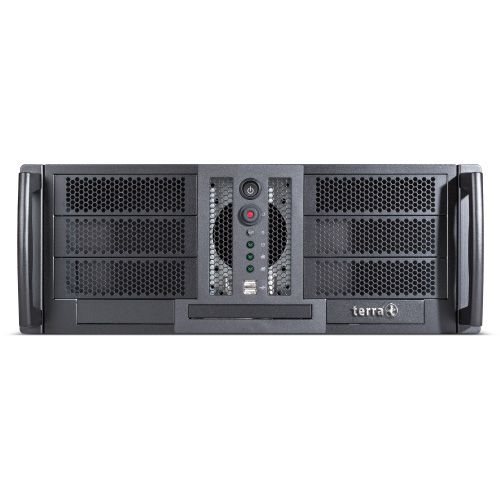

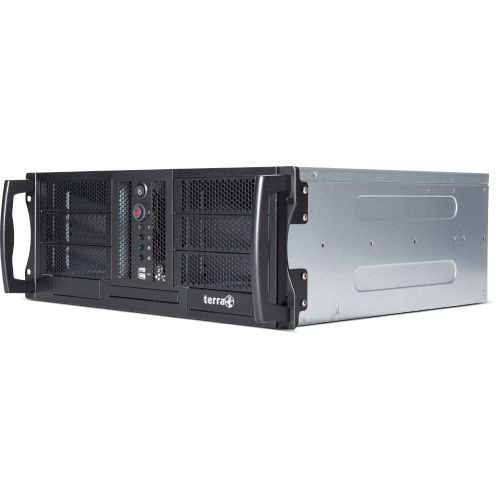

| Chassis type | Rack-mountable |
| Certification | ISO 9001, Assembled in Germany ¦ Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | Optional |
| Category: Keyboard | |
| Keyboard language | Option. Keyboard not included |
| Device interface | USB ¦ Note: Keyboard not included |
| Category: Technical details | |
| Localization | International |
| Category: Packaging content | |
| Category: Expansion slots | |
| Expansion slots | 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x8 @ x4 Gen4 "open slot", 1x PCIe x8 @ x4 Gen3, 2x PCIe x1 Gen3, 1x PCI 32Bit (via PCI to PCIe Bridge) |
| Category: Weight & dimensions | |
| Height | 17.6 |
| Width | 43 |
| Depth | 44.5 |
| Weight | 15.5 |
| Category: Other features | |
| Interface | 4x DisplayPort V1.4a, Audio (Mic-in / Line-in/-out), 3x LAN (RJ-45), 4x USB 3.2 (Gen1), 2x USB 3.2 (Gen2), 1x USB-C 3.2 (Gen2), COM1 (RS232), Optional: COM 2+3+4 |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | Kontron K3851-R ¦ 24-7 ready ¦ Made in Germany |
| Cooling type | Active |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany ¦Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Category: Mouse | |
| Mouse included | TERRA Wheel optical by Cherry |
| Category: Graphics | |
| On-board graphics adapter memory | Dynamisch |
| On-board graphics adapter maximum resolution | Digital maximum resolution: 5120×2880 |
| Graphics card | Intel UHD Graphics 630 (1050 MHz) |
| On-board graphics card model | Intel UHD Graphics 630 (1050 MHz) |
| Graphics adapter ports | 4x DisplayPort V1.4a |
| Category: Power | |
| Power source | ATX Netzteil 80 Plus Gold, 24-7 eligible ¦ Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 % |
| Maximum input power | 400 Watt |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Category: Operational conditions | |
| Operating temperature (T-T) | 5 °C – 35 °C |
| Recommended humidity operating range | 10 – 75% (non-condensing) |
| Category: Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | LAN 1: Intel i219LM with 10/100/1000 MBit/s (WoL, PXE, iAMT), LAN 2+3: Intel i225LM with 10/100/1000/2500 MBit/s (WoL, PXE) |
| Category: Optical drive | |
| Optical drive type | DVD±RW |
| Category: Input device | |
| Movement detection technology | Optical |
| Category: Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
